Entity Search Picker

Overview

The Entity Search Picker is a highly configurable tool designed to facilitate the selection of entities within the platform. This picker allows users to select one or more entities based on configurable criteria, making it a versatile component in various applications. This documentation outlines the configuration options, functionality, and internal workings of the Entity Picker, to assist developers and template editors in implementing and utilizing the tool effectively.

The root configuration to use is the following:

entitySearchPicker:
  title: Entity Search Picker
  ui:field: EntitySearchPicker
  ui:options:
    entities:
      # the list of Entity Providers goes here

Under ui:options, you define the entities property: a list of objects used to configure the Entity Providers, i.e. the providers used to fetch the different kinds of entities that can be queried by the user. See Entity Providers below for the full list of available providers and their configuration.

Common Configuration

The following options are shared across all Entity Providers. Provider-specific options and caveats are documented in each provider's own section under Entity Providers.

Selection mode

Defined at the ui:options level (not inside a single entity provider), it toggles between single and multiple selection:

ui:options:
  multiSelection: true # or false
  entities:
    # ...

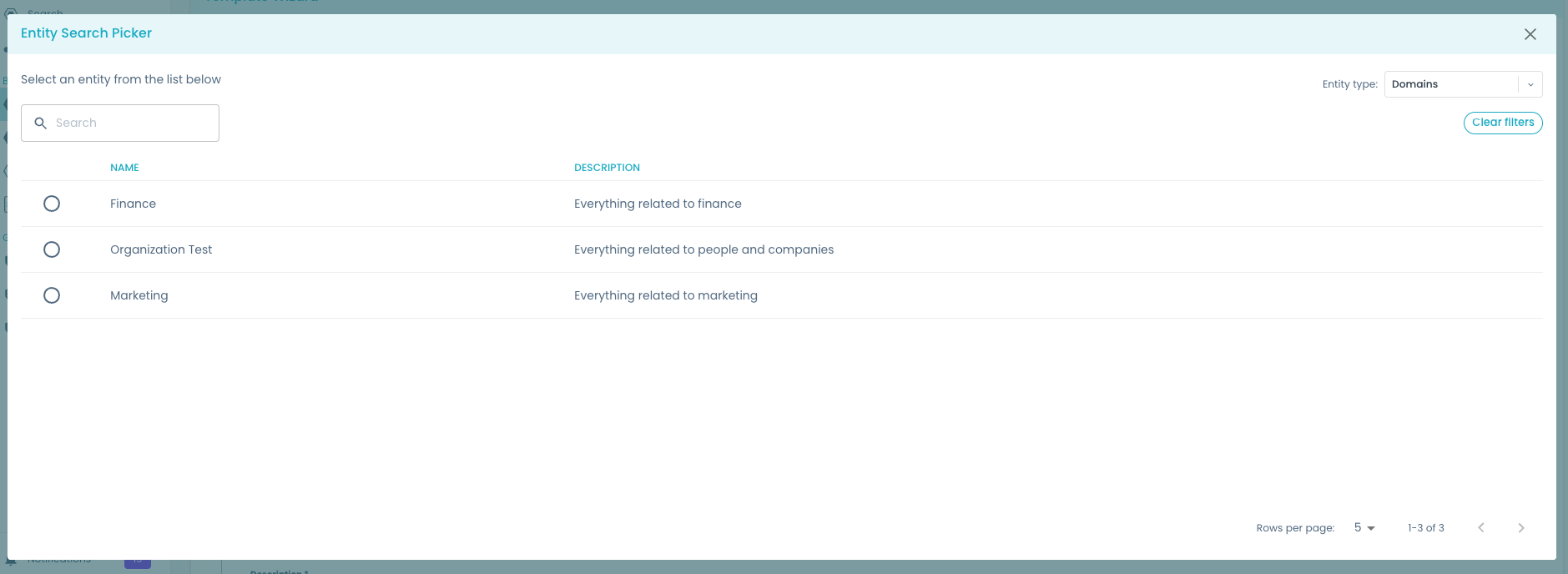

Single Selection (multiSelection: false): The picker returns the returnField of a single selected entity.

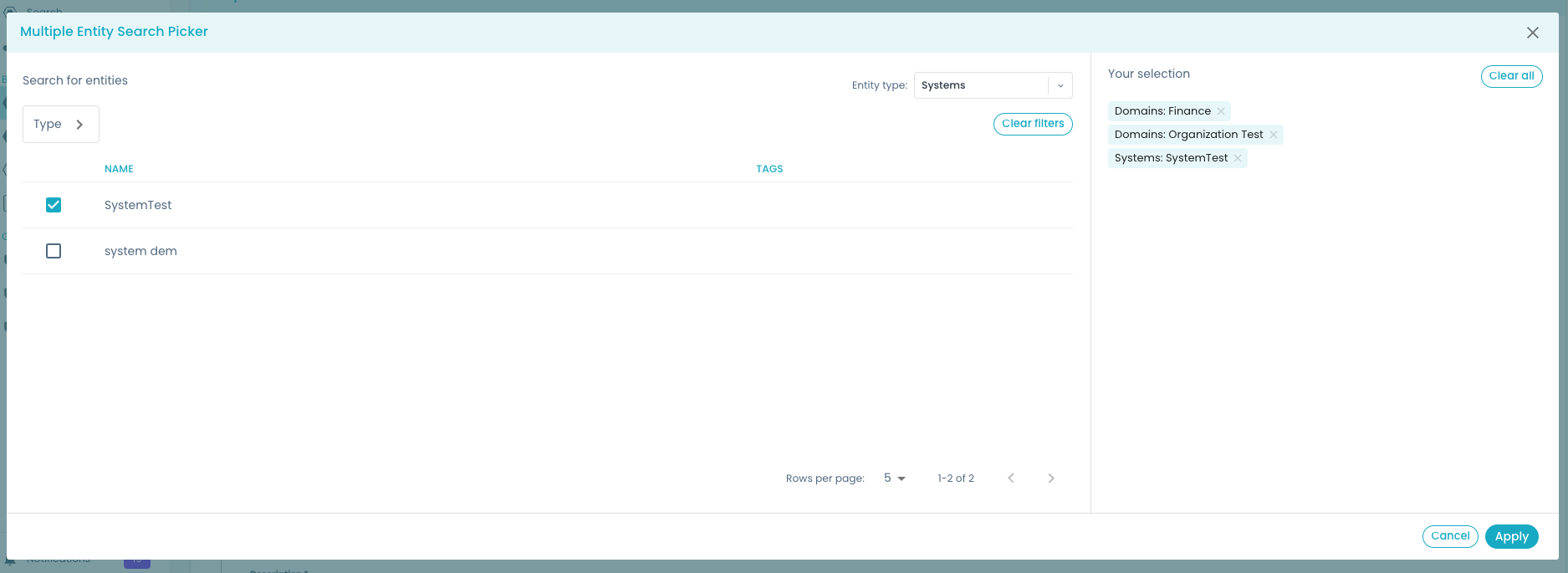

Multiple Selection (multiSelection: true): The picker allows the selection of multiple entities, returning a list of values.

It's possible to return the entity ref or full entity object, instead of URN, by changing the returnField in the configuration (see Return field).

It is also possible to define the boolean field ui:allowArbitraryValues that, if set to false, prevents the users from typing arbitrary values outside the list of selectable items. This specifies if the field can be edited manually by the user. If omitted, by default it will be false (not editable by the user).

Display name

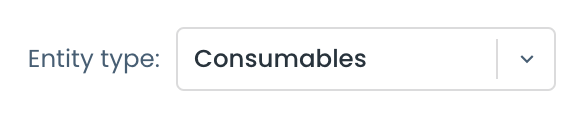

A string that defines the label shown as a prefix when an entity is selected and it's used as the name on the entity kind selector (pluralized), inside the dialog window. The entity kind is used as a fallback. For example:

displayName: Consumables

EntitySearchPicker single selection field

Display field

It defines which property is shown for the selected entities. This property is processed as a Nunjucks value, so it can contain variables and expressions. It represents which label is shown for selected entities.

displayField: '{{spec.mesh.name}}'

When not defined, the field entity.spec.mesh.name is used, and in case it is not defined, the fallback value is entity.metadata.name or name for Consumable Provider. Provider-specific defaults are called out in each provider's section.

Nunjucks syntax

Anywhere the EntitySearchPicker evaluates a Nunjucks expression — displayField, columns[].path, Data Contract's filter.system, Business Concept's conceptSchemeFilter/conceptFilter — you can use either the standard {{ ... }} syntax or the scaffolder-style ${{ ... }} syntax interchangeably; both are normalized internally and resolve identically:

displayField: '{{spec.mesh.name}}' # standard syntax
# or
displayField: '${{spec.mesh.name}}' # scaffolder-style syntax

Return field

With this configuration, it is possible to choose which value is returned for the selected entities. The values accepted depend on the Entity Provider; see each provider's section for what it supports and its full output shape.

urn: the Witboost global URN (this is the default value for most providers) e.g.: urn:dmb:dmn:finance
ref: entity reference used inside the Builder module e.g.: domain:default/finance
full: all properties of the object (shape varies by provider — see each provider's Output sub-section)
iri: (Business Concept only) the concept IRI as a string

warning

For Consumable and Data Contract entity types, you cannot return an entity reference, because it does not exist. If ref is selected, the Witboost global URN will be given.

warning

The Business Concept entity type does not support urn or ref at all — using either throws an error at initialization. Use iri (the default) or full. See Business Concept for details.

Filters usable by end users

These are the filters that end users can apply to refine their selection within the user interface, configured via userFilters. The template developer can choose which filters to make available to end users. Common filters include:

search: filter elements matching with spec.mesh.name, metadata.name or name; this filter is available to all the Entity Providers.

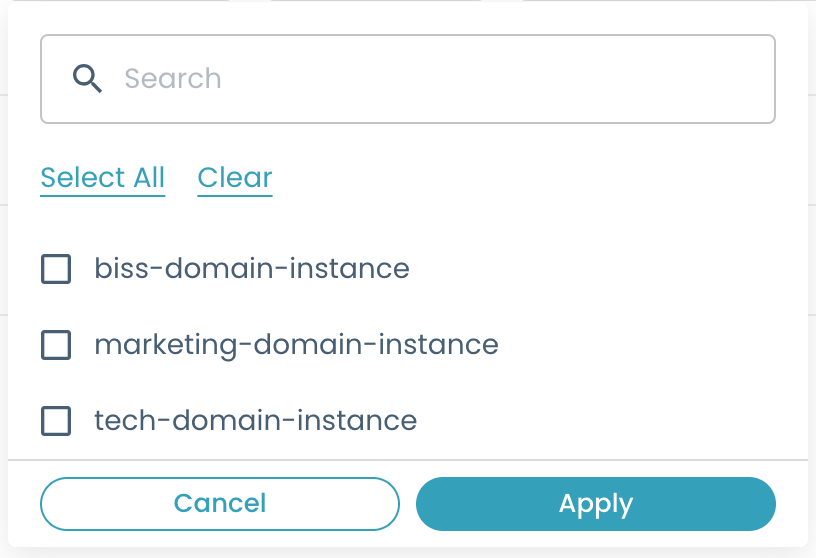

domain: filter elements matching the domain property; this filter is available to System and Consumable Entity Providers.

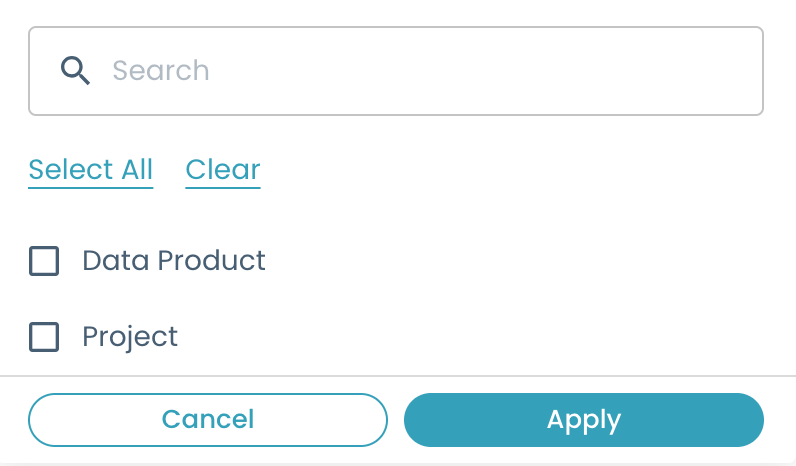

type: filter elements matching the type property; this filter is available only to System Entity Provider.

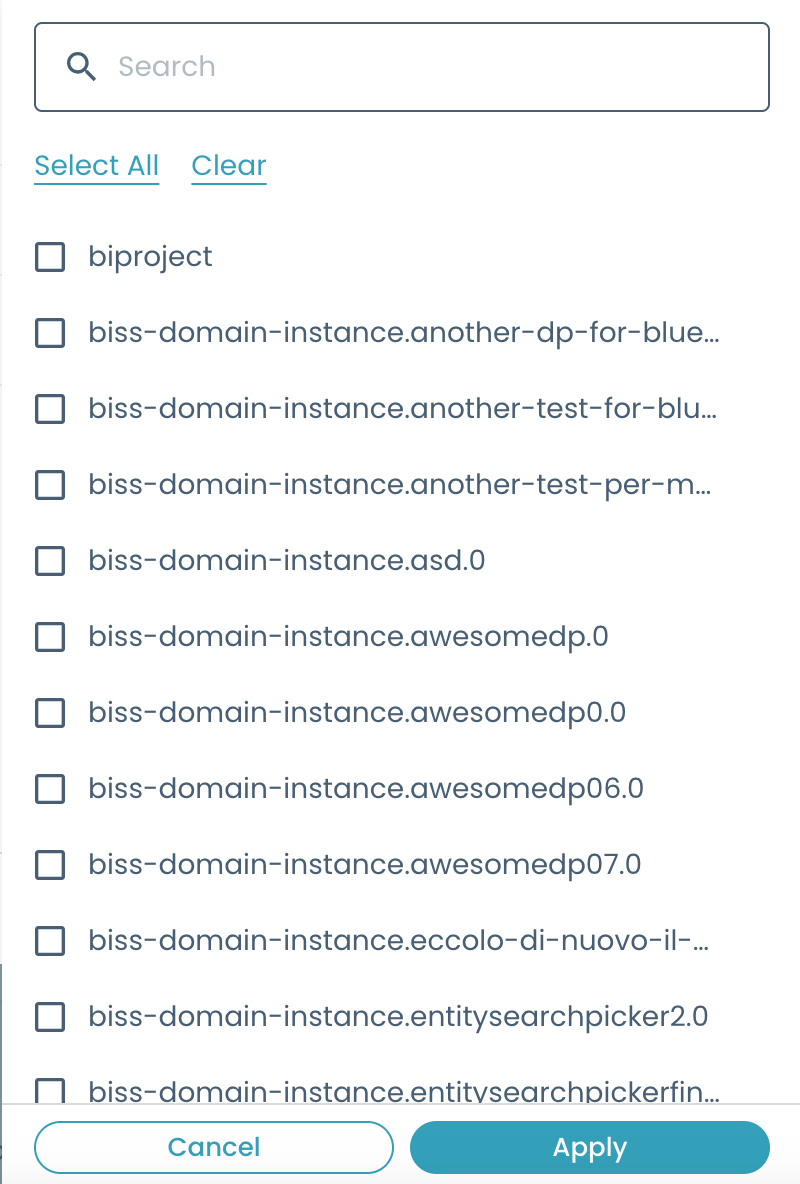

system: filter elements matching the selected system URN property; this filter is available only to Consumable and Data Contract Entity Providers.

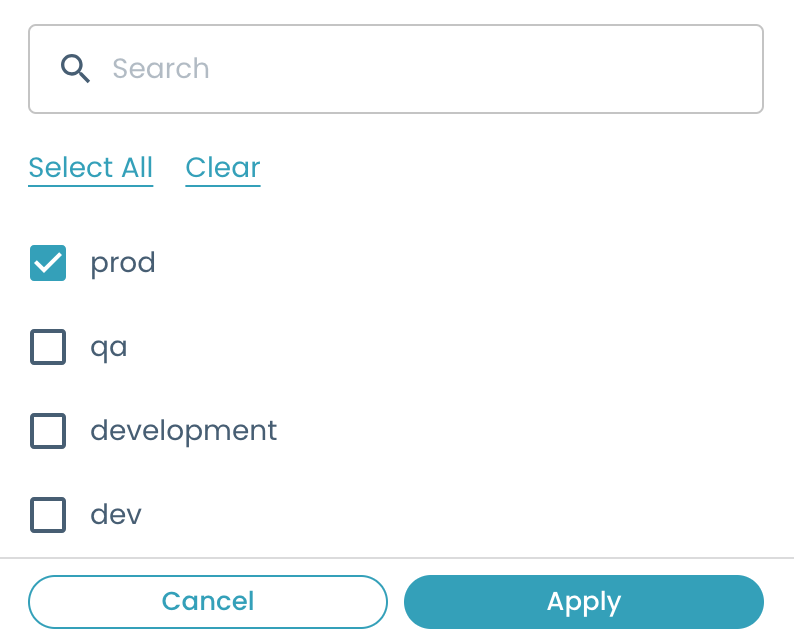

environment: filter elements matching the environment property; this filter is available only to Consumable Entity Provider.

warning

By default, no filters are shown, if not specified.

Which userFilters values are accepted depends on the Entity Provider; see each provider's section for the exact list.

Pre-filtering

Usually, you would like to limit the values that the user can select before they even open the picker. This is done by defining a filter object under the entity configuration:

filter:
  practiceShaper:
    kind: ${PRE_FILTER} # the value depends on the selected Entity Provider

Every entity type has its own filter options, fully documented in each provider's Configuration sub-section below (see Domain, System, Consumable, Data Contract and Business Concept). Resource and Remote do not support pre-filtering.

Displayable columns in the selection table

Template developers can choose to display a set of columns in the entity selection table. This customization enhances the user's ability to view pertinent information. You can show any number of additional columns by referencing fields of the selected entity (even using Nunjucks to perform transformations).

To define the additional columns, you can leverage the following configuration fields:

name to define the column name displayed in the table;
path to define which value to show. It's a Nunjucks template, rendered against the entity object as it would be returned by returnField: full for that Entity Provider (see Return field for the exact shape). It is important to enforce the string type for this field inside the yaml by using the single quotes as shown to avoid errors;
value that can be used as an alternative to path to choose among two default values: name and description. These are shortcuts for the most common fields to display.

Since the full shape differs per Entity Provider, so does what you can put in path:

Domain / System / Resource / Data Contract: the entity is a catalog entity, so path navigates metadata, spec, etc., e.g. {{spec.mesh.name}}, {{metadata.name}}.
Consumable: the entity is a flat object, so path navigates its top-level fields directly, e.g. {{name}}, {{domain}}, {{specific.bucket}} (no metadata/spec wrapper).
Business Concept: the entity is { id, type, properties }, so path reads {{id}}, {{type}}, or {{properties['skos:prefLabel']}}. properties is not the full set of RDF properties of the concept: it only contains the predicates you explicitly requested via columns (plus skos:prefLabel, always included) — see Business Concept for details and the shorthand syntax.
Remote: columns are generated dynamically from the API response and can reference any top-level field returned by the external API.

Example:

columns:
  - name: name
    path: '{% if spec.mesh.name %}{{spec.mesh.name}}{% else %}{{metadata.name}}{% endif %}'
  - name: description
    value: description
  - name: owner
    path: '{{spec.owner}}'
  - name: tags
    path: '{% for tag in spec.mesh.tags %}{{tag.tagFQN}}{{', ' if not loop.last }}{% endfor %}'

Witty Autocomplete

You can enable AI-powered suggestions in the EntitySearchPicker by setting wittySuggestions.enabled = true:

ui:options:
  wittySuggestions:
    enabled: true
  entities:
    # ...

This is a cross-cutting feature that works at the EntitySearchPicker level, so it is compatible with all Entity Providers (Domain, System, Resource, Consumable, Data Contract, Business Concept and Remote).

For a full example and more details, see the Witty Autocomplete Agent.

Entity Providers

The Entity Provider is a component used by the EntitySearchPicker that is responsible for fetching, filtering and rendering all the data of entities of a specific kind. The generic configuration you can use to define an Entity Provider is the following:

multiSelection: true # see "Selection Mode" section
kind: ${ENTITY_KIND} # the kind of data the Entity Provider is handling
displayField: ${OBJECT_PROPERTY} # the property of the object to show in the EntitySearchPicker after a selection
returnField: ${RETURNING_FIELD} # "urn", "ref", "full" or "iri", it corresponds to the value to be saved in the final catalog-info.yaml file
userFilters: ${FILTERS_LIST} # a list of filters that can be used in the EntitySearchPicker to filter values
filter:
  practiceShaper:
    kind: ${PRE_FILTER} # it contains a string value used to pre-filter data before rendering the EntitySearchPicker. This value depends on the selected Entity Provider
columns: # a list of objects describing the columns to display in the table

The picker can be configured to allow the selection of these entities by default:

Domain
System
Resource
Consumable
Data Contract
Business Concept
Remote

It is possible to choose your entities under the ui:options parameter with the entities attribute. There you can set more than one entity type, and for each one, you can define a specific configuration.

Domain

Overview

Selects domain instance entities (kind: Domain) from the catalog.

Configuration

You can refine what set of domains the user can choose from with the filter.practiceShaper pre-filter:

Option	Type	Description
kind	`string`	One of:
		- compatibleWithType - See below.
		- instanceOf - See below.
		- compatibleWithCurrentTemplate - Takes the SystemType/ComponentType reference, which is the target of the `generates` relation of the current creation template, and applies the same logic of `compatibleWithType`.
compatibleWithType	`string[]`	(Required when kind is compatibleWithType) Accepts the reference of a Practice Shaper entity type (e.g., SystemType, ComponentType). Filters domain instances whose DomainType (`spec.instanceOf` property) is the parent domain (directly or transitively) of the provided type.
instanceOf	`string[]`	(Required when kind is instanceOf) Reference of a DomainType in the Practice Shaper. Filters domain instances that are instances of the provided type.

Supported userFilters: search.

Examples:

compatibleWithCurrentTemplate pre-filter:

Let's imagine the Domain Entity Provider is used in a template that generates an Output Port (generates: componenttype:default/outputport). If no pre-filter is present or only the compatibleWithCurrentTemplate pre-fillter is set, the end user will see only the domain the Output Port is binded to, or, if no domain is found for that Output Port, it will be showed only the domain binded to the Output Port's system.

The pre-filter to set will be the following:
```
filter:
  practiceShaper:
    kind: compatibleWithCurrentTemplate
```
compatibleWithType pre-filter:

If you want to specify a ComponentType or SystemType the domain must be binded to, you can do it by using the following configuration:
```
filter:
  practiceShaper:
    kind: compatibleWithType
    compatibleWithType:
      - componenttype:default/outputport
      - systemtype:default/project
```
In this way, there will be shown only the domain instances binded to the 'Output Port' component type and 'Project' system type.

instanceOf pre-filter:

If you want to specify a list of DomainTypes to be instantiated by domain instances, you can do it with the following configuration:

filter:
  practiceShaper:
    kind: instanceOf
    instanceOf:
      - domaintype:default/department
      - domaintype:default/business-domain

Output

returnField supports urn (default), ref and full. The full shape is a catalog entity:

{
  "apiVersion": "backstage.io/v1alpha1",
  "kind": "Domain",
  "metadata": {
    "name": "finance",
    "description": " Everything related to finance",
    "links": [
      {
        "url": "http://example.com/domain/finance",
        "title": "Finance Domain"
      }
    ]
  },
  "spec": {
    "owner": "group:datameshplatform",
    "mesh": {
      "name": "Finance"
    }
  }
}

Example

domain:
  title: Domain
  type: string
  description: The Domain of the Data Product.
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: Domain
        displayName: Domain
        displayField: '{{spec.mesh.name}}'
        returnField: ref
        userFilters:
          - search
        filter:
          practiceShaper:
            kind: compatibleWithType
            compatibleWithType:
              - systemtype:default/dataproduct
        columns:
          - name: name
            path: '{{metadata.name}}'
          - name: description
            value: description

System

Overview

Selects system instance entities (kind: System) from the catalog.

Configuration

You can refine what set of systems the user can choose from with the filter.practiceShaper pre-filter:

Option	Type	Description
kind	`string`	One of:
		canBeParentOfType - See below.
		instanceOf - See below.
		canBeParentOfCurrentInstance (Default) - Takes the ComponentType reference, target of the `generates` relation of the current creation template, and applies the same logic of `canBeParentOfType`.
canBeParentOfType	`string[]`	Accepts the reference of a ComponentType. Filters system instances whose SystemType (`spec.instanceOf` property) is the target of a `partOf` relation having as a source the provided ComponentType.
instanceOf	`string[]`	Reference of a SystemType in the Practice Shaper. Filters system instances that are instances of the provided type.

Supported userFilters: search, domain, type.

Examples:

canBeParentOfCurrentInstance pre-filter:

Let's imagine the System Entity Provider is used in a template that generates an Output Port (generates: componenttype:default/outputport). If no pre-filter is present or just the canBeParentOfCurrentInstance pre-filter is set, the end user will see only the system the Output Port is binded to.
```
filter:
  practiceShaper:
    kind: canBeParentOfCurrentInstance
```
canBeParentOfType pre-filter:

If you want to specify a ComponentType the system must be binded to, you can do it by using the following configuration:
```
filter:
  practiceShaper:
    kind: canBeParentOfType
    canBeParentOfType:
      - componenttype:default/project-component
```
instanceOf pre-filter:

If you want to specify a list of SystemTypes the systems must be instance of, you can do it with the following configuration:
```
filter:
  practiceShaper:
    kind: instanceOf
    instanceOf:
      - systemtype:default/dataproduct
```

Output

returnField supports urn (default), ref and full. The full shape is a catalog entity (same shape as Domain).

Example

dataproduct:
  title: Data Product
  description: Data Product
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: System
        displayField: '{{spec.mesh.name}}'
        returnField: ref
        filter:
          practiceShaper:
            kind: instanceOf
            instanceOf:
              - systemtype:default/dataproduct
        userFilters:
          - search
          - domain
          - type
        columns:
          - name: name
            path: '{{spec.mesh.name}}'
          - name: owner
            path: '{{spec.owner}}'

Resource

Overview

Selects resource entities (kind: Resource) from the catalog. This is the simplest Entity Provider — it does not support pre-filtering.

Configuration

No provider-specific pre-filter options are available for Resource.

Supported userFilters: search.

Output

returnField supports urn (default), ref and full. The full shape is a catalog entity (same shape as Domain).

Example

resource:
  title: Entity Search Picker
  description: single resource search
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: Resource
        displayName: Resource
        displayField: '{{spec.mesh.name}}'
        returnField: urn
        userFilters:
          - search
        columns:
          - name: name
            path: '{{metadata.name}}'

Consumable

Overview

Selects consumable components and subcomponents (kind: Consumable), i.e. marketplace entities that can be read from.

Configuration

You can refine what set of components the user can choose from with the filter.practiceShaper pre-filter:

Option	Type	Description
kind	`string`	One of:
		canBeReadFrom - See below.
		canBeReadFromCurrentInstance (Default) - Takes the ComponentType reference, target of the generates relation of the current creation template, and applies the same logic of `canBeReadFrom`
canBeReadFrom	`string`	Accepts the reference of a ComponentType. Filters consumable components and subcomponents whose type is one among the resource types readable from the provided component type, based on the Practice Shaper.

Supported userFilters: search, domain, system, environment.

Example:

canBeReadFromCurrentInstance pre-filter:

Let's imagine the Consumable Entity Provider is used in a template that generates an Output Port (generates: componenttype:default/outputport). If no pre-filter is present or just the canBeReadFromCurrentInstance pre-fillter is set, you will see only the components/sub-components instances the Output Port can read from.
```
filter:
  practiceShaper:
    kind: canBeReadFromCurrentInstance
```
canBeReadFrom pre-filter:

If you want to specify a ComponentType from which component instances can read, you can do it by using the following configuration:
```
filter:
  practiceShaper:
    kind: canBeReadFrom
    canBeReadFrom: componenttype:default/outputport
```
In the above example, the componenttype:default/outputport reads from two other ComponentTypes: componenttype:default/workload and componenttype:default/storage. Consequently, you will see in the EntitySearchPicker only the components that are instances of the before-mentioned types and that are consumable too.

Output

returnField supports urn (default) and full.

warning

You cannot return an entity reference for Consumables, because it does not exist. If ref is selected, the Witboost global URN will be given.

The full shape is a flat marketplace object (no metadata/spec wrapper), e.g.:

{
  "_computedInfo": {
    "urn": "urn:dmb:cmp:sub-domain-a:dpwithimpala:0:s3-cdp-output-portasdasd-6",
    "domain": {
      "id": "urn:dmb:dmn:subdomaina",
      "name": "sub-domain-A"
    },
    "system": {
      "id": "urn:dmb:dp:sub-domain-a:dpwithimpala:0",
      "name": "DPWithImpala"
    }
  },
  "id": "urn:dmb:cmp:sub-domain-a:dpwithimpala:0:s3-cdp-output-portasdasd-6",
  "kind": "outputport",
  "name": "S3 CDP Output Portasdasd 6",
  "tags": [],
  "text": "",
  "title": "S3 CDP Output Portasdasd 6",
  "domain": "sub-domain-A",
  "version": "0.0.0",
  "location": "urn:dmb:cmp:sub-domain-a:dpwithimpala:0:s3-cdp-output-portasdasd-6",
  "platform": "CDP on AWS",
  "specific": {
    "acl": {
      "users": [],
      "owners": []
    },
    "bucket": "asdasd",
    "folder": "asdasd",
    "cdpEnvironment": "asdasd"
  },
  "dependsOn": [],
  "startDate": "2023-09-28T11:02:24.233Z",
  "documentId": "urn:dmb:cmp:sub-domain-a:dpwithimpala:0:s3-cdp-output-portasdasd-6:dev",
  "sampleData": {},
  "technology": "S3",
  "description": "asdasd",
  "environment": "dev",
  "creationDate": "2023-09-28T11:02:24.233Z",
  "dataContract": {
    "SLA": {
      "upTime": null,
      "timeliness": null,
      "intervalOfChange": null
    },
    "schema": [],
    "endpoint": null,
    "termsAndConditions": null
  },
  "outputPortType": "Files",
  "semanticLinking": [],
  "deploymentUnitId": "urn:dmb:dp:sub-domain-a:dpwithimpala:0",
  "useCaseTemplateId": "urn:dmb:utm:aws-cdp-outputport-s3-template:0.0.0",
  "fullyQualifiedName": null,
  "processDescription": null,
  "dataSharingAgreements": {
    "billing": null,
    "purpose": null,
    "security": null,
    "lifeCycle": null,
    "limitations": null,
    "intendedUsage": null,
    "confidentiality": null
  },
  "infrastructureTemplateId": "urn:dmb:itm:aws-cdp-outputport-s3-provisioner:0"
}

When not defined, displayField falls back to name for Consumable (instead of spec.mesh.name/metadata.name used by catalog-based providers).

Example

readsFrom:
  title: Reads from
  type: array
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: true
    entities:
      - type: Consumable
        displayField: '{{name}}'
        returnField: urn
        filter:
          practiceShaper:
            kind: canBeReadFrom
            canBeReadFrom: componenttype:default/workload
        userFilters:
          - search
          - domain
          - system
          - environment
        columns:
          - name: name
            path: '{{name}}'

Data Contract

Overview

Selects a Data Contract (kind: DataContract).

Configuration

You need to refine what set of data contracts the user can choose from, using the filter.system pre-filter:

Option	Type	Description
system	`string`	The nunjucks value of the system picker. Data Contracts will be fetched from that system. If not present, all data contracts present in Witboost are fetched.

Supports both {{ }} and ${{ }} syntax — see Nunjucks syntax.

Supported userFilters: search, system.

warning

If the pre-filter system is set, it will override the system filter in the user filters. As a consequence, the user will not display the system filter in the EntitySearchPicker, even if he set it in the template.

Example:

system pre-filter:

Let's imagine the DataContract Entity Provider is used in a template that generates an Output Port (generates: componenttype:default/outputport). In order to choose data contracts, you need to use the following configuration:

dataContract:
  title: Data Contracts
  description: Choose Data Contracts
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: DataContract
        returnField: urn # or full
        filter:
          system: '{{systemPickerName}}'
        userFilters:
          - search
          - system # this will not be shown to the user

In this way, the user will see the data contracts of the system selected in the picker named systemPickerName.

If the user wants to see all the data contracts present in Witboost, he can set the system filter in the user filters instead of the pre-filter:

dataContract:
  title: Data Contracts
  description: Choose Data Contracts
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: DataContract
        returnField: urn # or full
        userFilters:
          - search
          - system

Output

returnField supports urn (default) and full.

warning

You cannot return an entity reference for Data Contracts, because it does not exist. If ref is selected, the Witboost global URN will be given.

How data contracts are discovered

The provider queries the catalog for kind: Component entities belonging to the resolved system (via the partOf relation). It then inspects each component recursively:

a component is a data contract if spec.mesh.__dataContractEnabled: true;
a sub-component entry in spec.components[] is a data contract if its __dataContractEnabled: true.

Data contracts are not standalone catalog entities — they are either a Component or an embedded entry inside one.

With returnField: full, the entire entity object is returned.

Top-level component (the component itself has spec.mesh.__dataContractEnabled: true):

{
  "apiVersion": "witboost.com/v1",
  "kind": "Component",
  "metadata": {
    "name": "finance.cashflow.0.storage",
    "namespace": "default",
    "description": "Storage area"
  },
  "spec": {
    "type": "storage",
    "owner": "group:default/bigdata",
    "system": "system:default/finance.cashflow.0",
    "mesh": {
      "name": "Cashflow Storage",
      "dataContract": {
        "schema": [],
        "SLA": {}
      }
    }
  },
  "relations": [],
  "__metadata": {
    "kind": "DataContract",
    "name": "finance.cashflow.0.storage"
  }
}

Sub-component (an entry in spec.components[] with __dataContractEnabled: true):

{
  "name": "customers-table",
  "dataContract": {
    "schema": [],
    "SLA": {}
  },
  "id": "urn:dmb:cmp:finance.cashflow.0.storage:customers-table",
  "__metadata": {
    "kind": "DataContract",
    "name": "finance.cashflow.0.storage.customers-table"
  }
}

For sub-components the id is a synthetic URN built from the parent component ref and the sub-component name. There is no metadata/spec wrapper. With multiSelection: false, the form field receives a single object (not an array).

Example

dataContract:
  title: Data Contracts
  description: Choose Data Contracts
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: DataContract
        returnField: full
        filter:
          system: '{{systemPickerName}}'
        userFilters:
          - search
        columns:
          - name: name
            path: '{% if spec.mesh.name %}{{spec.mesh.name}}{% else %}{{metadata.name}}{% endif %}'
          - name: type
            path: '{{spec.type}}'

Business Concept

Overview

When you want the users to select one or more business concepts (e.g. glossary terms) from the Witboost Knowledge Graph, use the BusinessConcept Entity Provider (type: BusinessConcept). Unlike the other providers, it doesn't fetch catalog entities: it queries the Knowledge Graph Manager (KGM) for SKOS concepts and lets the user navigate a tree of concept schemes and concepts.

Minimal example:

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos

This renders a picker that searches across all SKOS concepts in the knowledge graph, starting from every concept scheme registered in the KGM.

Configuration

`preset` (required)

preset: skos

The vocabulary preset to activate. Currently the only accepted value is "skos". It configures the traversal rules used to explore the Knowledge Graph:

What it controls	Value applied automatically
Follow links downward (concept → concept)	`skos:narrower`
Follow links upward (concept → concept)	`skos:broader`
Expand a concept scheme into its concepts	`skos:inScheme` (inverse), pruned via `excludeDescendants` (see below)
Display label property	`skos:prefLabel`
SKOS namespace shortcut	`http://www.w3.org/2004/02/skos/core#`

info

By default, expanding a concept scheme shows only its true top-level concepts — those that are members of the scheme (via skos:inScheme) but have no skos:broader parent also in that scheme. This works out of the box even for vocabularies that never declare skos:hasTopConcept. See schemeRelations / schemeInverseRelations / excludeDescendants if you need to override this behavior.

`conceptSchemeFilter` (optional)

Limits the picker to concepts that belong to one or more specific concept collections (concept schemes). Use this when you want to let users pick from a well-defined domain — for example "only concepts from the Banking glossary" or "only concepts from the HR vocabulary".

Each entry identifies a collection by its IRI or by its display label:

- type: BusinessConcept
  preset: skos
  conceptSchemeFilter:
    - 'http://ex.org/type#BankingVocabulary' # identified by IRI
    - 'HR Vocabulary' # identified by label

If you list more than one collection, the picker shows concepts from any of them.

warning

Label matching is not unique

When you identify a collection by label (rather than IRI), the picker uses all concept schemes that have that exact label. If two or more schemes share the same name, the picker will include concepts from all of them. To target a specific scheme unambiguously, use its IRI.

info

conceptSchemeFilter and conceptFilter are mutually exclusive. If both are provided, conceptSchemeFilter takes precedence.

Dynamic filters (Nunjucks expressions)

Each entry of conceptSchemeFilter (and conceptFilter, see below) can also be a Nunjucks expression instead of a static IRI/label, resolved live against the values of other fields already filled in the same form — the same mechanism used by Data Contract's filter.system. This lets you drive which concept scheme(s) are shown from a previous step of the template, for example from a Domain picker earlier in the form:

- type: BusinessConcept
  preset: skos
  conceptSchemeFilter:
    - '{{ domain.spec.iri }}' # or '${{ domain.spec.iri }}' - see "Nunjucks syntax"

Static values and Nunjucks expressions can be freely mixed in the same list. Whenever any entry in the list resolves through Nunjucks, the picker automatically re-fetches results every time the referenced field(s) change.

info

While a referenced field has not been filled in yet (i.e. the expression resolves to an empty value), that entry is excluded from the filter. If all entries resolve to an empty value, the filter behaves as if it were not configured at all, and the picker falls back to its default (all concept schemes for conceptSchemeFilter, or all concepts for conceptFilter). Once the dependent field is filled in, the picker automatically re-fetches results scoped to the resolved value.

warning

If a Nunjucks expression fails to render (e.g. invalid syntax or an unknown filter), the field is disabled and an inline error is shown, the same way as other misconfigurations (see Return field).

`conceptFilter` (optional)

Starts the traversal from a specific set of individual concepts instead of a whole collection. The picker will show those concepts and all concepts reachable from them.

Each entry is an IRI or a display label:

- type: BusinessConcept
  preset: skos
  conceptFilter:
    - 'http://ex.org/type#Accounts'
    - 'Credit Card'

warning

Label matching is not unique

When you identify a concept by label (rather than IRI), the picker uses all concepts that have that exact label as their starting point. If multiple concepts share the same name, all of them — and their connected concepts — will be included in the results. Use the concept IRI when you need to target a specific concept precisely.

Like conceptSchemeFilter, entries can also be Nunjucks expressions resolved against other form fields — see Dynamic filters above for syntax and behavior while the referenced field is unresolved.

`expandStartNodes` (optional, default: `false`)

By default, the initial tree view shows the entry points (e.g. the concept schemes). Set this to true to have the picker automatically expand them and show their first-level children instead.

- type: BusinessConcept
  preset: skos
  conceptSchemeFilter:
    - 'http://ex.org/type#BankingVocabulary'
  expandStartNodes: true

`relations` / `inverseRelations` (optional)

Override the default SKOS traversal predicates used to expand a concept-to-concept node in the tree (i.e. skos:Concept → skos:Concept; scheme expansion is configured separately, see schemeRelations / schemeInverseRelations / excludeDescendants below):

relations — forward relations followed to fetch children. Defaults to ['skos:narrower'].
inverseRelations — inverse relations followed to fetch parents. Defaults to ['skos:broader'].

- type: BusinessConcept
  preset: skos
  relations:
    - skos:narrower
    - skos:member # e.g. to also traverse SKOS-XL concept collections
  inverseRelations:
    - skos:broader

`schemeRelations` / `schemeInverseRelations` / `excludeDescendants` (optional)

Control how a skos:ConceptScheme node is expanded into its concepts — this is independent from relations/inverseRelations above, which only apply to concept-to-concept traversal.

schemeRelations — forward relations followed from a scheme to reach its concepts (e.g. skos:hasTopConcept). Defaults to none.
schemeInverseRelations — inverse relations followed from a scheme to reach its concepts (e.g. skos:inScheme, i.e. concept → scheme, followed backwards). Defaults to ['skos:inScheme'].
excludeDescendants — prunes the scheme's children down to the true top-level concepts, by excluding any candidate that can reach — within maxDepth hops — an ancestor that is also a candidate. Defaults to { childToAncestorRelations: ['skos:broader'], maxDepth: 10 }.

By default (no override needed), the picker follows skos:inScheme to find every member of a scheme, then uses excludeDescendants (via skos:broader) to keep only the ones without a broader parent also in the scheme — i.e. the true top-level concepts. This works for any SKOS vocabulary, whether or not it declares skos:hasTopConcept.

note

maxDepth is translated into a SPARQL query with one branch per depth level (1..maxDepth), evaluated for every candidate node. Very large values increase query size and execution time — pick the smallest value that covers your vocabulary's actual hierarchy depth.

warning

excludeDescendants requires at least one of childToAncestorRelations or ancestorToChildRelations to be non-empty; an explicit empty configuration (e.g. excludeDescendants: { childToAncestorRelations: [], ancestorToChildRelations: [] }) throws a configuration error.

`childrenPageSize` (optional, default: `20`)

Number of children fetched per page when expanding or paginating a tree node.

- type: BusinessConcept
  preset: skos
  childrenPageSize: 50

`displayField` (optional, default: `"skos:prefLabel"`)

The RDF predicate used as the display label inside the picker chips, table rows and breadcrumbs.

- type: BusinessConcept
  preset: skos
  displayField: skos:prefLabel

The property must also be fetched from the API, i.e. it must appear in columns or be skos:prefLabel.

`columns` (optional)

Defines the columns shown in the picker dialog table. If omitted, a single Label column displaying skos:prefLabel is rendered.

Each column definition follows the same shape used by the other Entity Providers (see Displayable Columns in the Selection Table), plus a simplified predicate shorthand for RDF properties:

columns:
  - name: Label
    path: skos:prefLabel
  - name: Definition
    path: skos:definition
  - name: ID
    path: id # top-level field
  - name: Type
    path: type # top-level field

The component automatically translates:

skos:prefLabel → {{properties['skos:prefLabel']}}
id / type → {{id}} / {{type}}

You can also use a full Nunjucks expression:

columns:
  - name: Label
    path: "{{properties['skos:prefLabel']}}"

important

Only predicates listed in columns (plus skos:prefLabel, always fetched) are requested from the KGM API. If you need a property in the full output (see below), it must appear in at least one column.

SKOS relations (e.g. skos:narrower, skos:broader) are traversal axes, not literal properties. They are not returned by the API as column values and cannot be displayed in the table.

`userFilters`

Only search is currently supported for the BusinessConcept Entity Provider.

Output

The returnField option behaves as follows for BusinessConcept. Only iri and full are supported; iri is the default when returnField is omitted:

`returnField`	Output
`iri` (default)	The concept IRI as a string, e.g. `"http://ex.org/type#Accounts"` (RDF concepts have no Witboost URN or catalog ref).
`full`	The full object: `{ id, type, properties }`. `properties` is not the full set of RDF properties of the concept in the graph — it only contains the predicates fetched from the KGM API, i.e. the ones you listed in `columns` (plus `skos:prefLabel`, always fetched). A predicate not listed in any column will not be present in `properties`, even if it exists on the concept.

warning

urn and ref are not supported and throw a configuration error at initialization.

Example full output:

{
  "id": "http://ex.org/type#Accounts",
  "type": "skos:Concept",
  "properties": {
    "skos:prefLabel": "Account Types",
    "skos:definition": "A categorization of the types of accounts offered."
  }
}

Examples

Full example

businessConcept:
  title: Business Concept (Banking)
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: true
    entities:
      - type: BusinessConcept
        displayName: Business Concept
        preset: skos
        conceptSchemeFilter:
          - 'http://ex.org/type#BankingVocabulary'
        returnField: full
        displayField: skos:prefLabel
        userFilters:
          - search
        columns:
          - name: Label
            path: skos:prefLabel
          - name: Definition
            path: skos:definition

Dynamic filter example

The following example drives the concept scheme filter from a Domain field selected earlier in the same template, assuming the Domain entities in your catalog store the IRI of their related concept scheme in a custom spec.iri property:

domain:
  title: Domain
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: Domain
        returnField: full

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos
        conceptSchemeFilter:
          - '{{ domain.spec.iri }}' # resolves once "domain" is selected

Until the user selects a value in the domain field, the conceptSchemeFilter expression resolves to an empty value and is excluded from the filter, so the Business Concept picker falls back to showing all available concept schemes.

Quick recipes by knowledge graph shape

Not every SKOS knowledge graph is authored the same way. Pick the recipe below that matches how your vocabulary is structured and copy the whole picker configuration as-is.

Standard case — your vocabulary only uses skos:inScheme (concept → scheme) and skos:narrower/skos:broader between concepts, with no skos:hasTopConcept:

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos

No override needed — this is the default preset: skos behavior. The picker follows skos:inScheme to find every member of a scheme, then prunes to the true top-level concepts via skos:broader.

skos:hasTopConcept case — your vocabulary explicitly declares top concepts (e.g. curated with PoolParty, TopBraid or VocBench):

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos
        schemeRelations:
          - skos:hasTopConcept
        schemeInverseRelations: [] # disable the default skos:inScheme + pruning

excludeDescendants case — you need to explicitly tune the pruning heuristic, e.g. because your hierarchy is deeper than the default 10-hop maxDepth:

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos
        excludeDescendants:
          childToAncestorRelations:
            - skos:broader
          maxDepth: 15 # increase only as much as your deepest scheme actually requires

Restrict to a specific concept scheme — you want users to only pick terms belonging to one vocabulary (e.g. only the Banking glossary), rather than browsing all concept schemes in the graph:

businessConcept:
  title: Business Concept
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: BusinessConcept
        preset: skos
        conceptSchemeFilter:
          - 'http://ex.org/type#BankingVocabulary'

tip

How to find the concept scheme IRI: open the Business Concept Map, click on the concept scheme node you want to target, then use the Copy IRI action in its detail panel — no need to look it up in the SPARQL endpoint or ask the graph admin.

Remote

Overview

The Entity Search Picker supports fetching entities from external APIs using the Remote Entity Provider. This functionality allows you to integrate with microservices or external systems to provide entity selection options.

warning

Microservice calls made by the Remote Entity Provider are proxied through the Witboost backend. Any baseUrl specified under apiSpec.retrieval (or resolved via microserviceId) must be reachable from within the cluster (i.e. from the Witboost backend pod).

Configuration

To use the remote entity provider, use type: Remote. Here's an example:

entitySearchPicker:
  title: Remote Entity Picker
  ui:field: EntitySearchPicker
  ui:options:
    entities:
      - type: Remote
        displayName: Remote
        fieldsToSave: # Optional
          - id
          - name
          - description
        columns: # Optional
          - name: 'Name'
            path: '{{name}}'
          - name: 'Description'
            path: '{{description}}'
        displayField: '{{name}}'
        userFilters: ['search'] # Optional, currently only 'search' is supported
        apiSpec:
          retrieval:
            baseUrl: 'https://your-api.example.com'
            path: '/api/entities'
            method: 'POST' # Optional, defaults to POST
            params: # Optional query parameters
              areaType: 'marketing'

As an alternative to providing baseUrl directly, you can use microserviceId to resolve the base URL, path, method, and API key from the Witboost platform configuration (see Custom URL Picker — Witboost configuration for how to register a microservice). Any path or method specified in the template take priority over the values from the configuration.

apiSpec:
  retrieval:
    microserviceId: 'my-microservice'
    path: '/api/entities' # Optional: overrides retrievalPath from config
    method: 'POST' # Optional: overrides retrievalMethod from config
    params:
      areaType: 'marketing'

Supported userFilters: search.

Output

returnField supports ref, urn and full. The API response fields you want available in the full output (or as fieldsToSave) must be present in the external API's JSON response.

The external API should return a JSON response with an array of entities. Each entity should be an object with the fields you want to use for selection and display.

Example API response:

{
  "data": [
    {
      "id": "ms-001",
      "name": "User Service",
      "description": "Handles user authentication and management",
      "type": "microservice",
      "status": "active"
    },
    {
      "id": "ms-002",
      "name": "Payment Service",
      "description": "Processes payments and transactions",
      "type": "microservice",
      "status": "active"
    }
  ]
}

Migration Guide

This section is intended to help you in migrating the current instances of the ReadsFromPicker, EntityPicker and BusinessConceptsPicker to the new EntitySearchPicker. Consider also migrating the before-mentioned pickers also in the edit-template to be consistent.

Entity Picker - Domain field

The EntityPicker used with domain type can be replaced safely with the following configuration:

domain:
  title: Domain
  type: string
  description: The Domain of the Data Product.
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: Domain
        displayName: Domain
        displayField: '{{spec.mesh.name}}'
        returnField: ref
        userFilters:
          - search
        filter:
          practiceShaper:
            kind: compatibleWithType
            compatibleWithType:
              - systemtype:default/dataproduct
        columns:
          - name: name
            path: '{{metadata.name}}'
          - name: description
            value: description

Entity Picker - System field

The EntityPicker used with system type can be replaced safely with the following configuration:

dataproduct:
  title: Data Product
  description: Data Product
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: false
    entities:
      - type: System
        displayField: '{{spec.mesh.name}}'
        returnField: ref
        filter:
          practiceShaper:
            kind: instanceOf
            instanceOf:
              - systemtype:default/dataproduct
        userFilters:
          - search
          - domain
          - type
        columns:
          - name: name
            path: '{{spec.mesh.name}}'
          - name: owner
            path: '{{spec.owner}}'

ReadsFrom Picker

The readsFrom Picker can be replaced with the following configuration:

readsFrom:
  title: Reads from
  type: array
  ui:field: EntitySearchPicker
  ui:options:
    multiSelection: true
    entities:
      - type: Consumable
        displayField: '{{name}}'
        returnField: urn
        filter:
          practiceShaper:
            kind: canBeReadFrom
            canBeReadFrom: componenttype:default/workload
        userFilters:
          - search
          - domain
          - system
          - environment
        columns:
          - name: name
            path: '{{name}}'
      - type: Resource
        displayName: Resource
        displayField: '{{spec.mesh.name}}'
        returnField: urn
        userFilters:
          - search
        columns:
          - name: name
            path: '{{metadata.name}}'

Overview​

Common Configuration​

Selection mode​

Display name​

Display field​

Return field​

Filters usable by end users​

Pre-filtering​

Displayable columns in the selection table​

Witty Autocomplete​

Entity Providers​

Domain​

Overview​

Configuration​

Output​

Example​

System​

Overview​

Configuration​

Output​

Example​

Resource​

Overview​

Configuration​

Output​

Example​

Consumable​

Overview​

Configuration​

Output​

Example​

Data Contract​

Overview​

Configuration​

Output​

Example​

Business Concept​

Overview​

Configuration​

preset (required)​

conceptSchemeFilter (optional)​

Dynamic filters (Nunjucks expressions)​

conceptFilter (optional)​

expandStartNodes (optional, default: false)​

relations / inverseRelations (optional)​

schemeRelations / schemeInverseRelations / excludeDescendants (optional)​

childrenPageSize (optional, default: 20)​

displayField (optional, default: "skos:prefLabel")​

columns (optional)​

userFilters​

Output​

Examples​

Full example​

Dynamic filter example​

Quick recipes by knowledge graph shape​

Remote​

Overview​

Configuration​

Output​

Migration Guide​

Entity Picker - Domain field​

Entity Picker - System field​

ReadsFrom Picker​

Overview

Common Configuration

Selection mode

Display name

Display field

Return field

Filters usable by end users

Pre-filtering

Displayable columns in the selection table

Witty Autocomplete

Entity Providers

Domain

Overview

Configuration

Output

Example

System

Overview

Configuration

Output

Example

Resource

Overview

Configuration

Output

Example

Consumable

Overview

Configuration

Output

Example

Data Contract

Overview

Configuration

Output

Example

Business Concept

Overview

Configuration

`preset` (required)

`conceptSchemeFilter` (optional)

Dynamic filters (Nunjucks expressions)

`conceptFilter` (optional)

`expandStartNodes` (optional, default: `false`)

`relations` / `inverseRelations` (optional)

`schemeRelations` / `schemeInverseRelations` / `excludeDescendants` (optional)

`childrenPageSize` (optional, default: `20`)

`displayField` (optional, default: `"skos:prefLabel"`)

`columns` (optional)

`userFilters`

Output

Examples

Full example

Dynamic filter example

Quick recipes by knowledge graph shape

Remote

Overview

Configuration

Output

Migration Guide

Entity Picker - Domain field

Entity Picker - System field

ReadsFrom Picker
