Discover Data from the Marketplace

Prerequisites​

  • You can login to Witboost

Overview​

The Witboost Marketplace is a central catalog of published products that you can use to search or discover data assets that fit your business case. What ends up in the marketplace is guaranteed to be compliant to the compliance checks and quality guardrails required by the Governance team at your company.

In this tutorial, you will learn how to search for and discover products in the Marketplace. We will use the Data Mesh paradigm as our example data landscape, so you will see the term product used interchangeably with product. You will also learn how to access the Lineage Graph for a product.

By the end of this tutorial, you will:
✅ Learn how to navigate the Marketplace and its search features.
✅ Understand how to filter and refine results to find relevant products.
✅ Explore products using the graph-based visualization tool.
✅ Know the different ways to open the Lineage Graph for product.

Getting Started with Visual Discovery​

Before searching for something specific, you can visually explore the Marketplace to get a broad view of the available products and business domains. This helps when you are not sure what to search for.

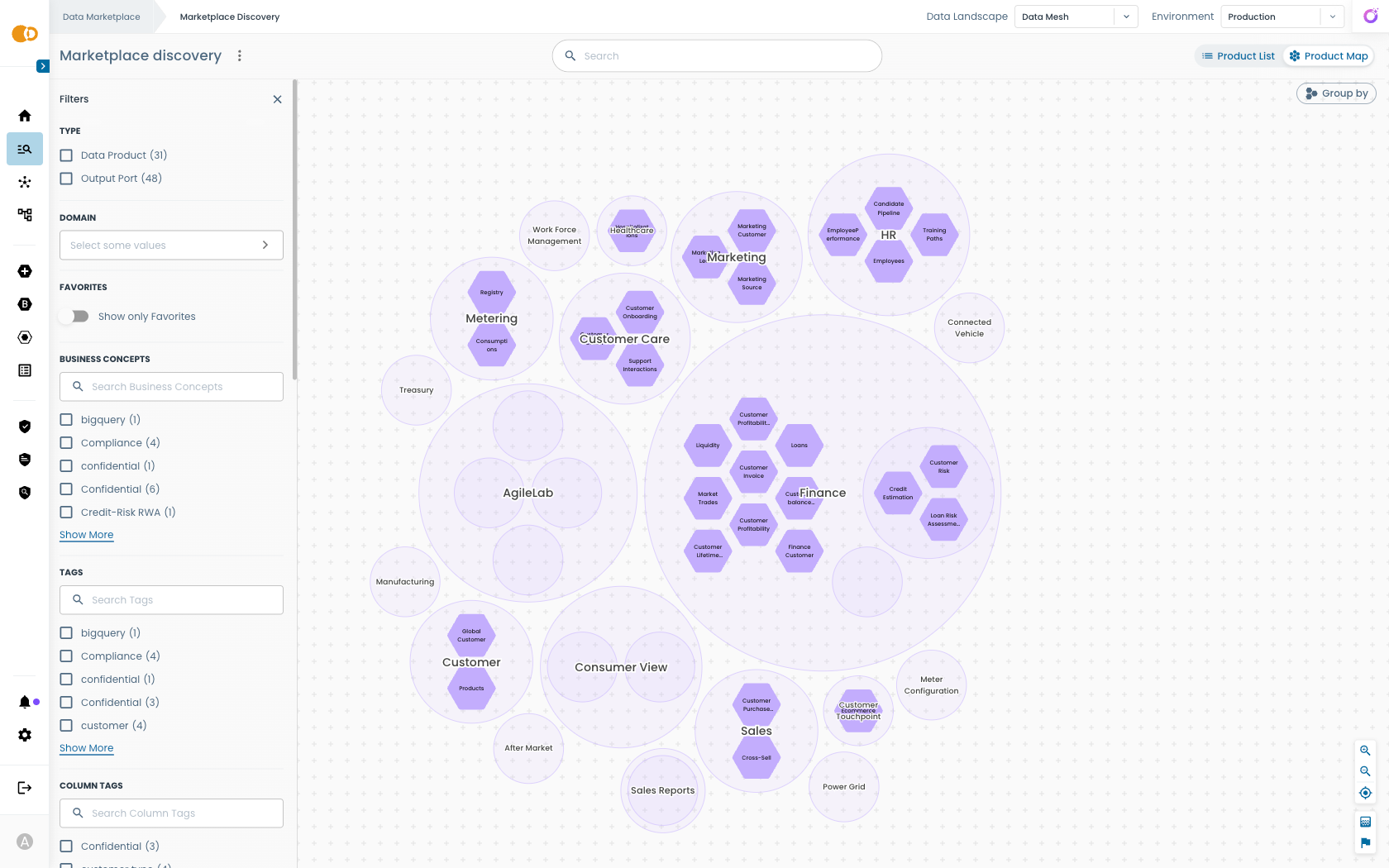

  1. Navigate to the Visual Discovery page from the side menu button

Domains and products are displayed in a navigable graph.

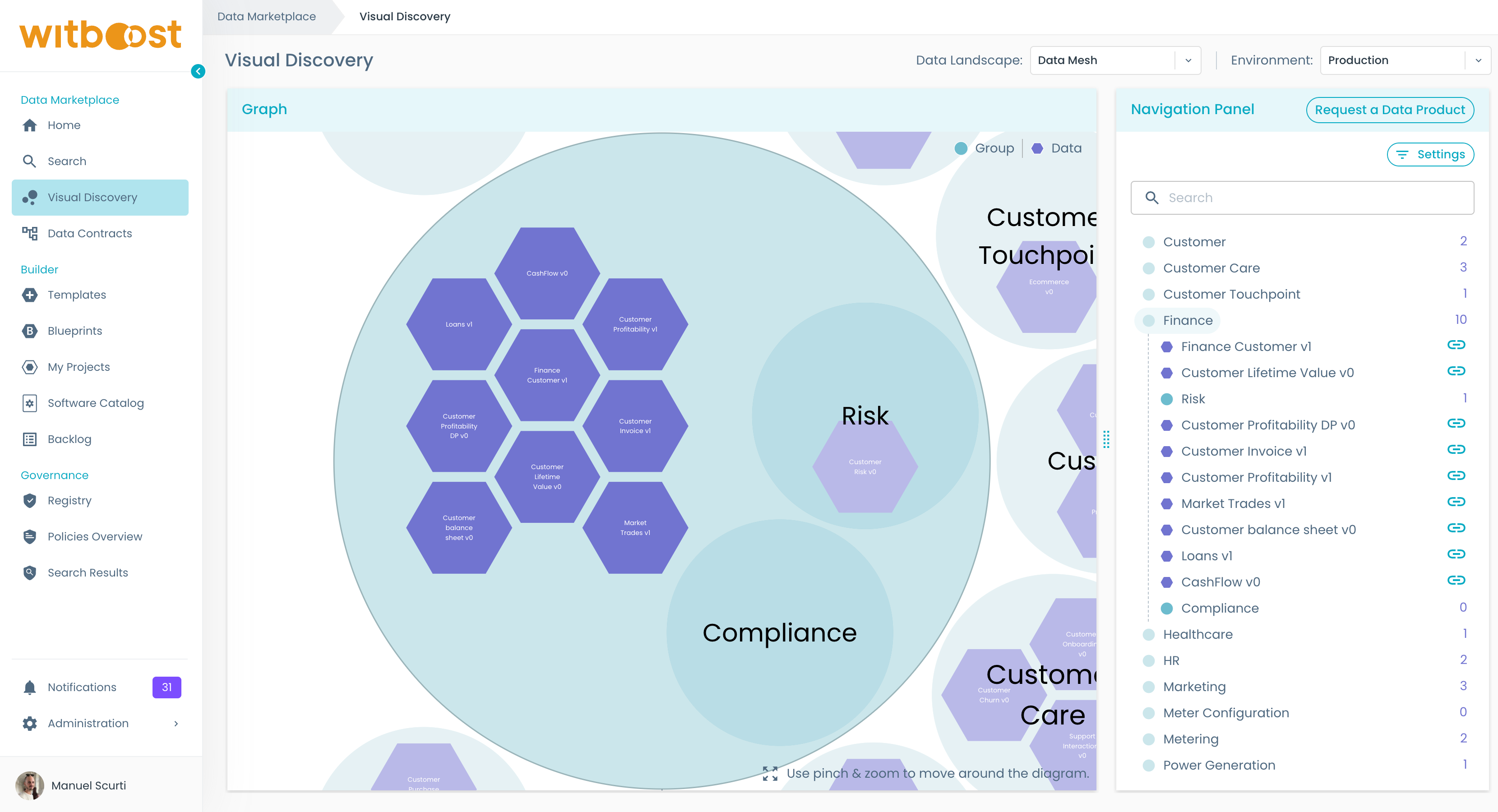

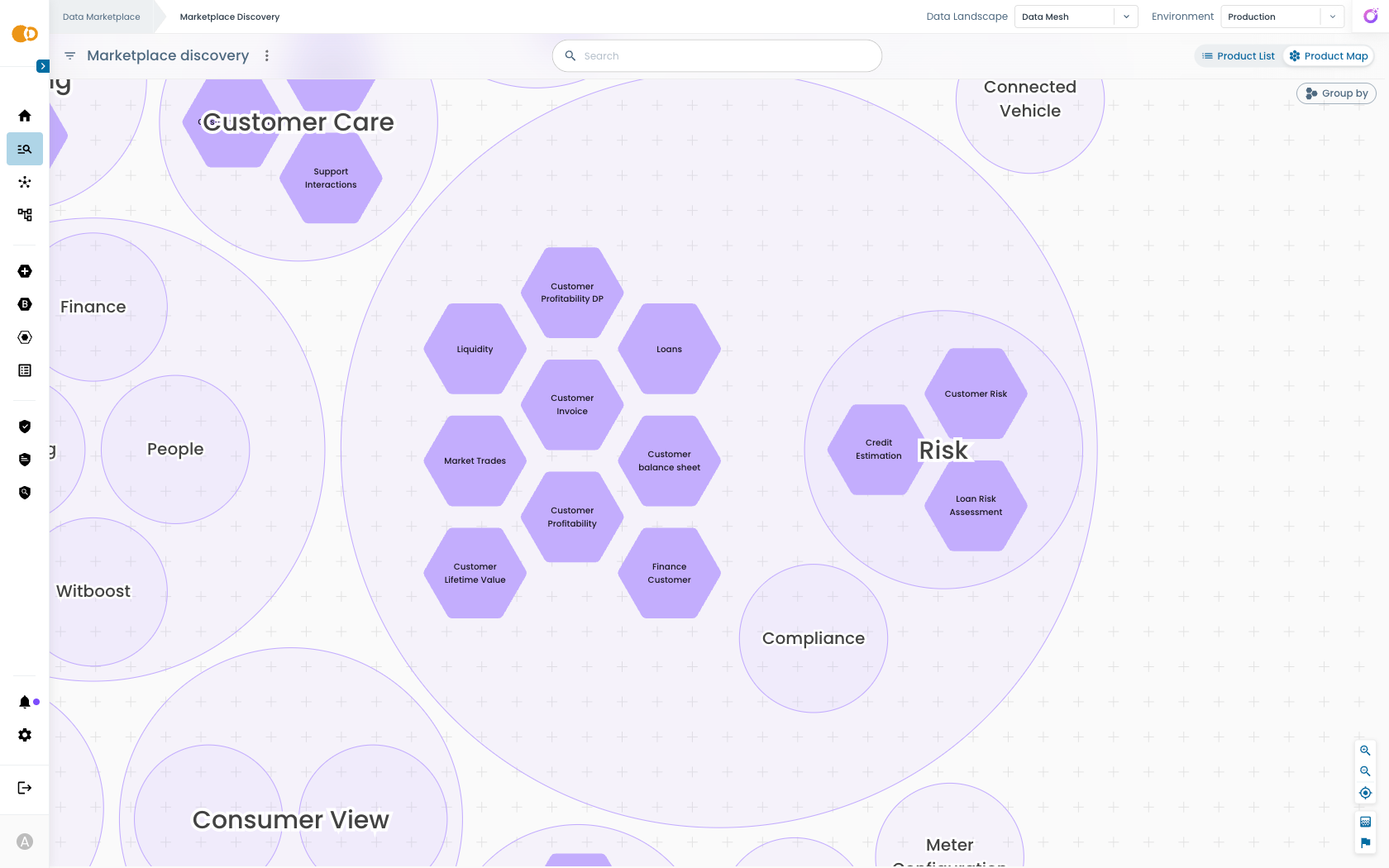

  1. Look around for the domain you are interested into. In this example, we want to take a look at products published by the Finance business domain. To zoom in, click on the Finance bubble.

You can notice that we now have an overview on the list of products belonging to the Finance domain, but also an overview on two of its subdomains: Risk and Compliance. On the right side, instead, we have a tree-like navigation that lists all the products inside the currently selected domain.

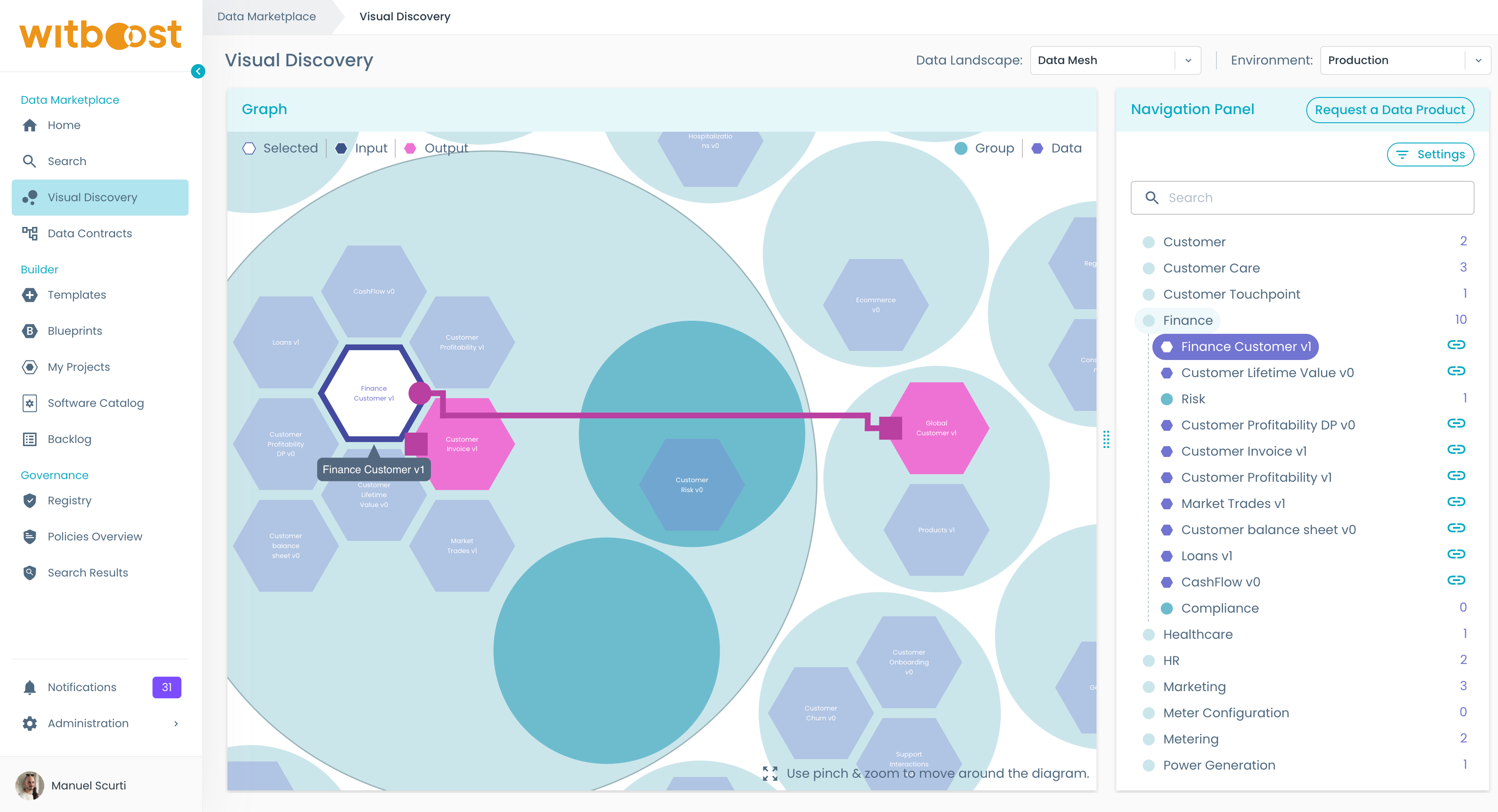

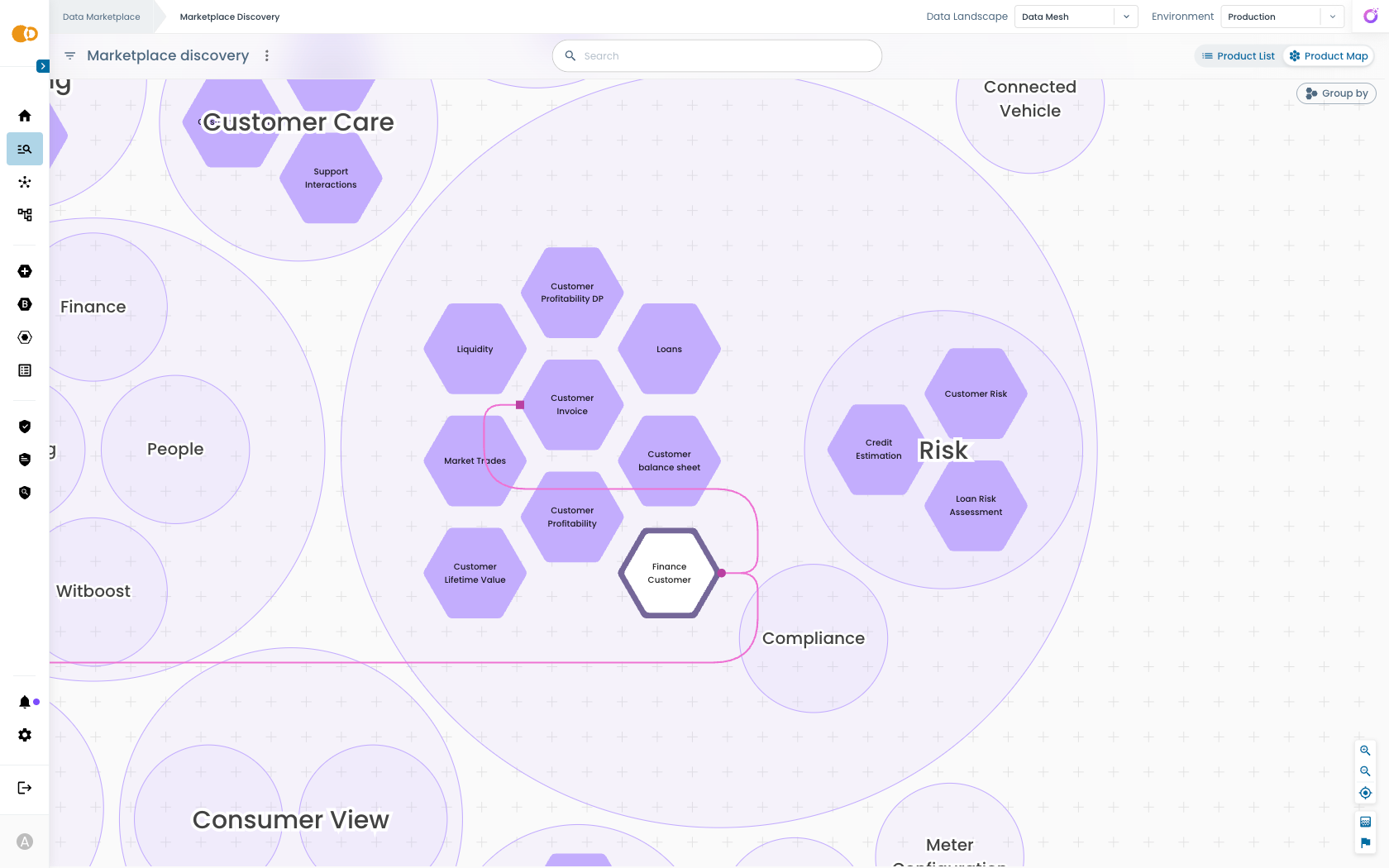

  1. We want to get more information about the Finance Customer v1 product, so we click on the hexagon.

The graph now shows the relationships between the selected product and the other ones. In this case the Finance Customer v1 product is consumed by the Global Customer v1 product.

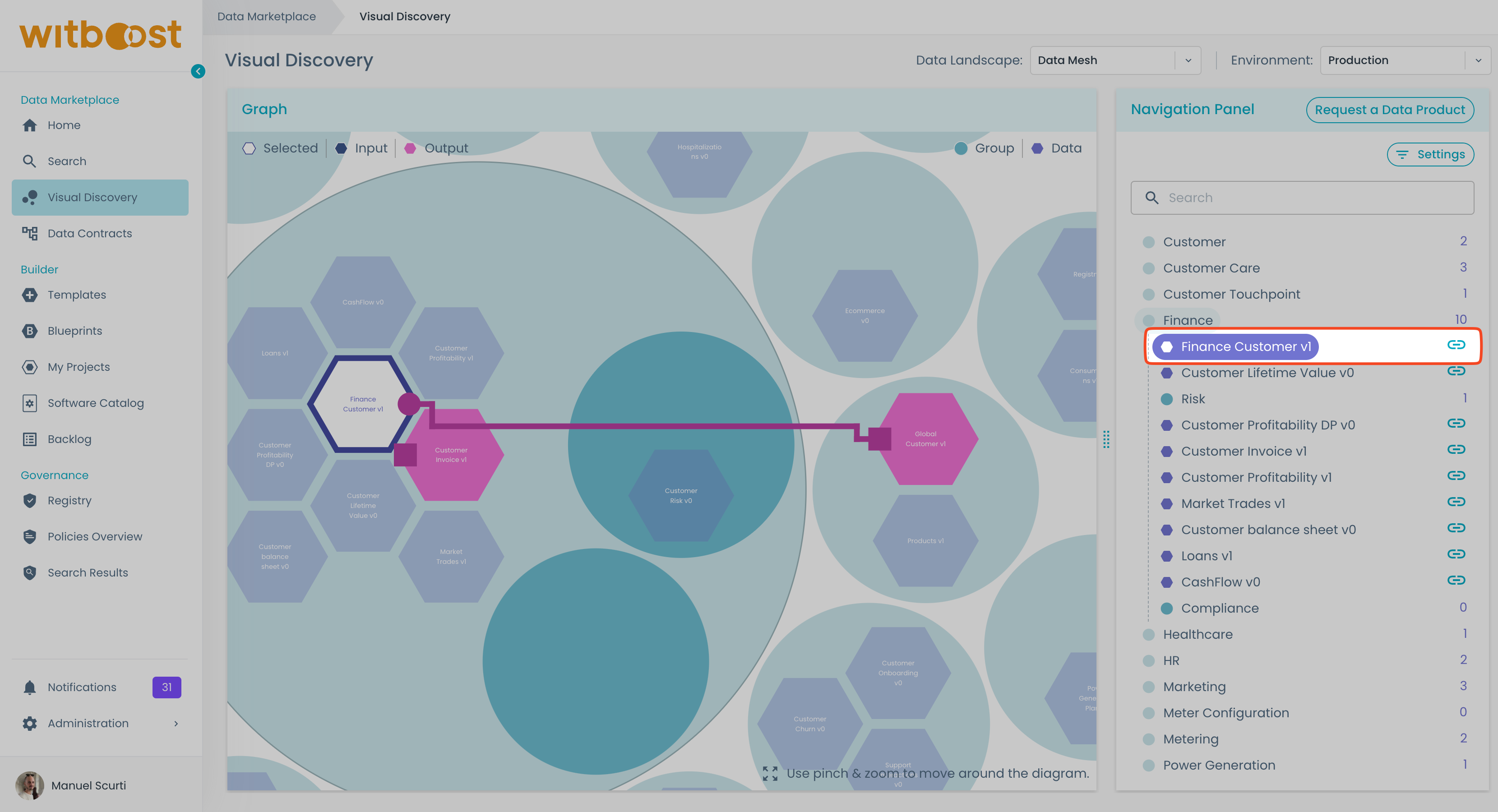

  1. To have a detailed view on the Finance Customer v1 product, click on the link on the navigation panel.

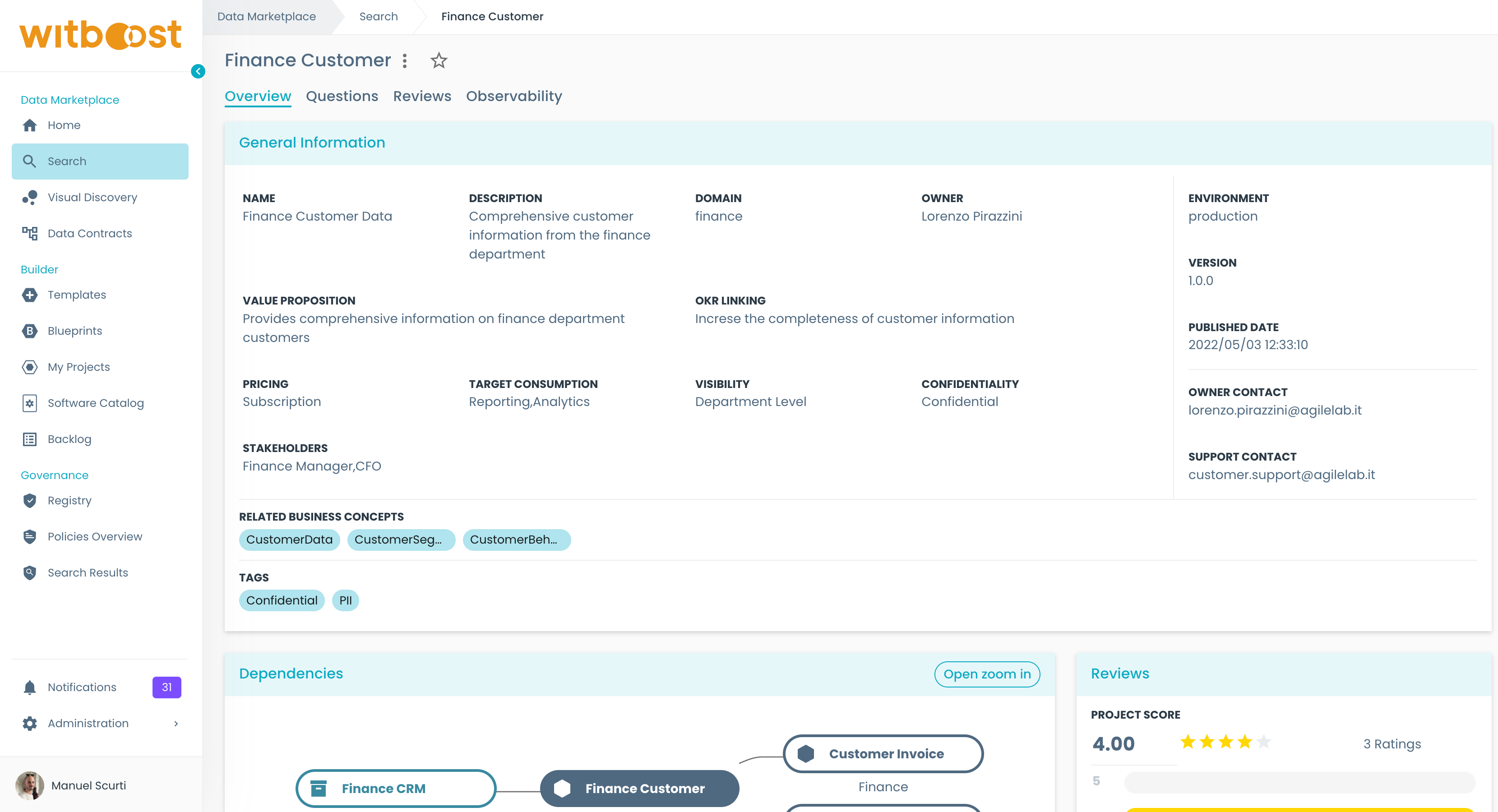

  1. From the overview page, you can check all the information published by the data team and review the list of its consumable interfaces which are called Output Ports in the case of the Data Mesh landscape

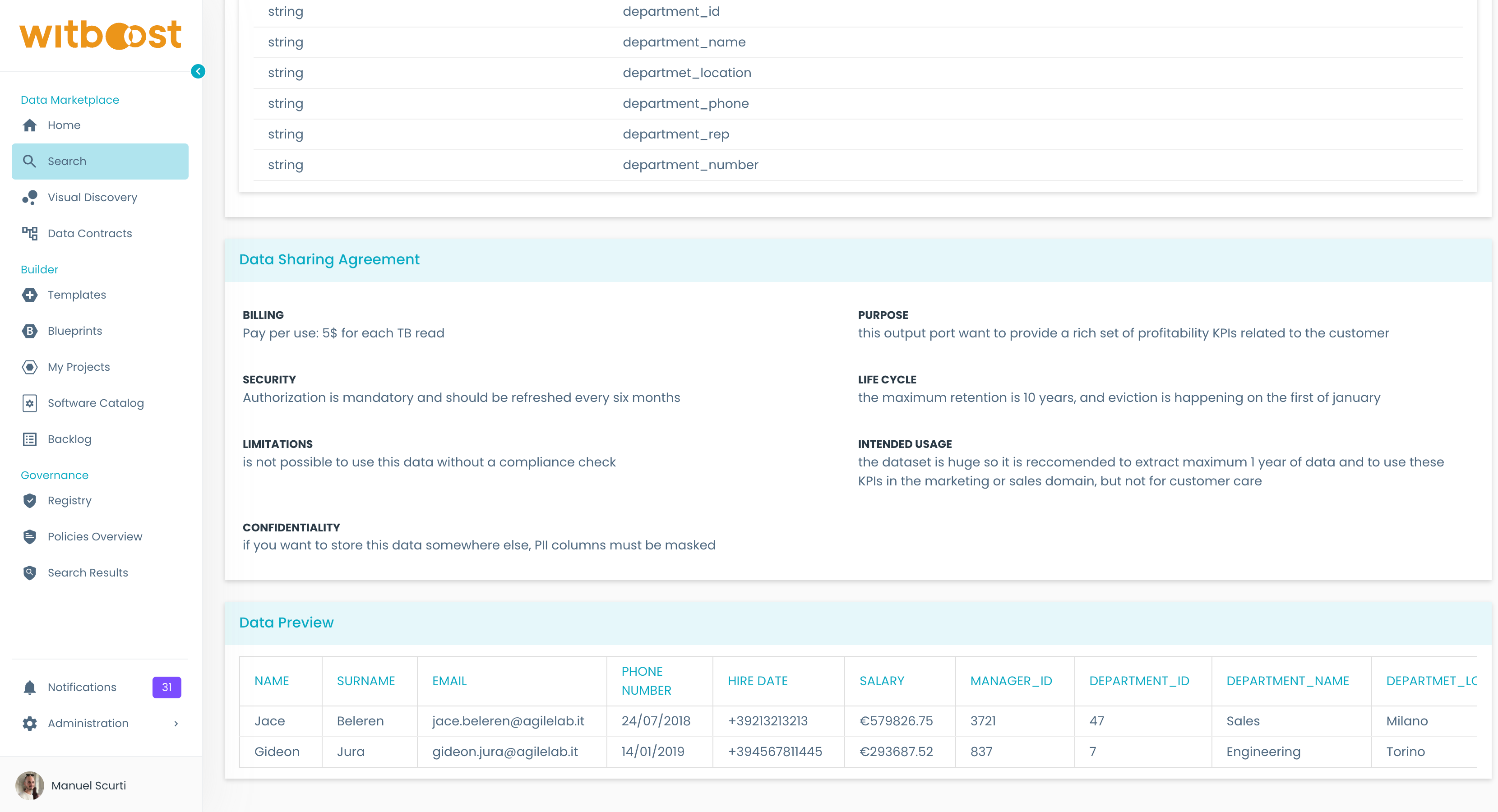

  1. Click on any output port to jump into the details of the published data like data contract schema, data sharing agreement and data preview.

Searching for a product​

Once you have explored the Marketplace visually, you may want to search for a specific product. The search bar allows you to find products using keywords.

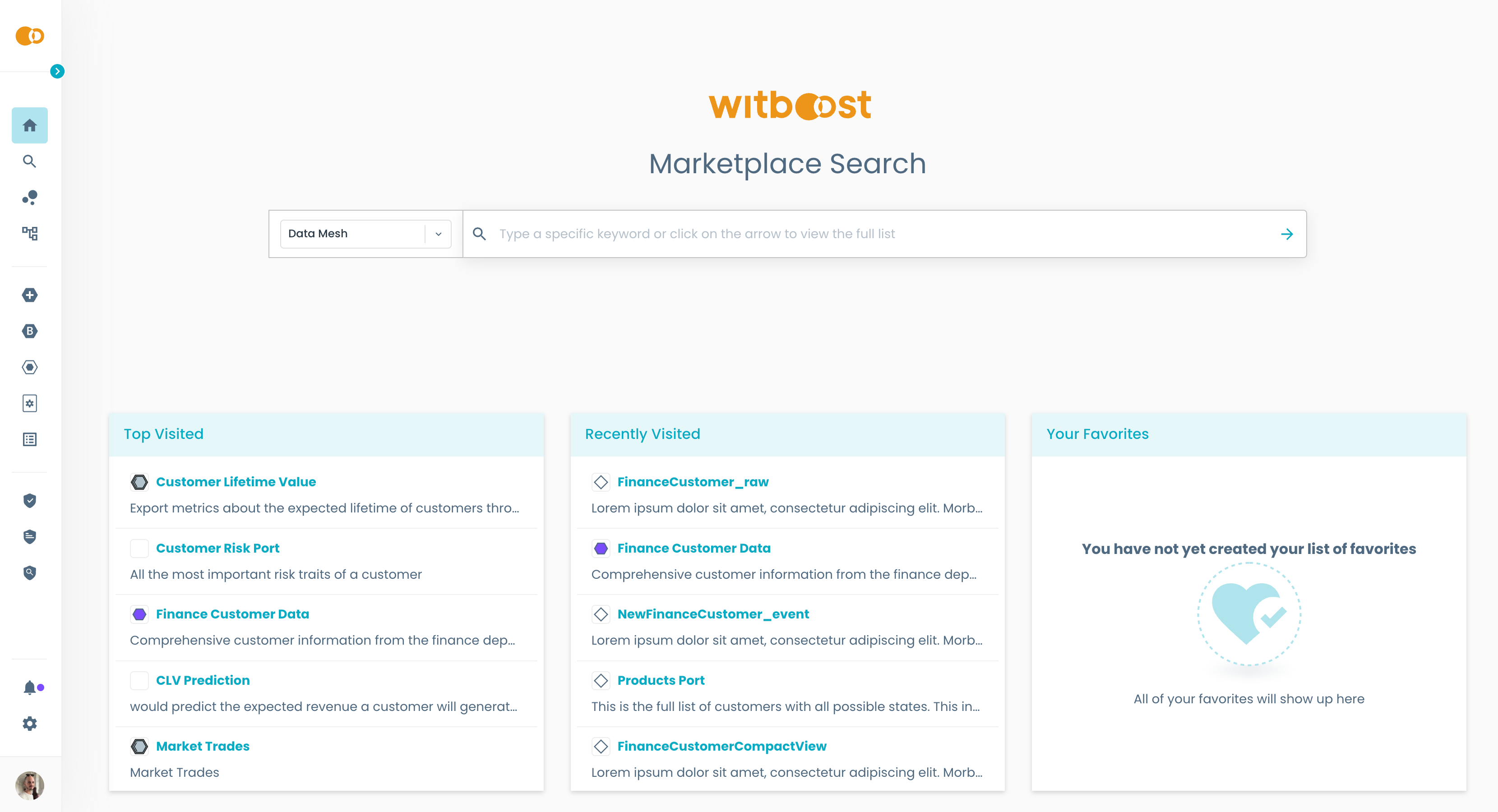

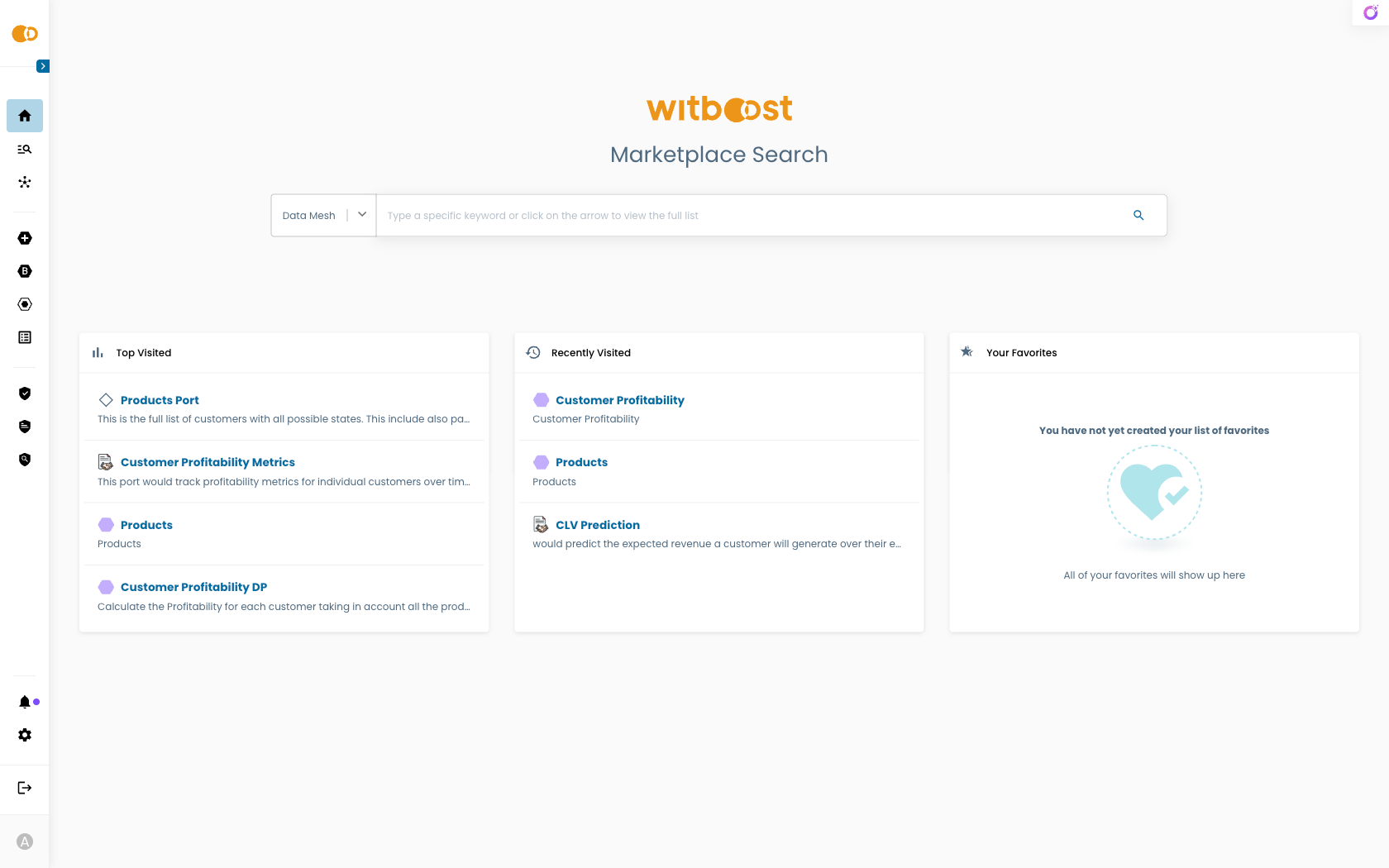

  1. Go to the Marketplace homepage.

info

If you don't have specific keywords, or you just want to navigate the list of published projects, just press Enter to access the results view. This is an alternative way, together with the Visual Discovery, to discover products published in Witboost.

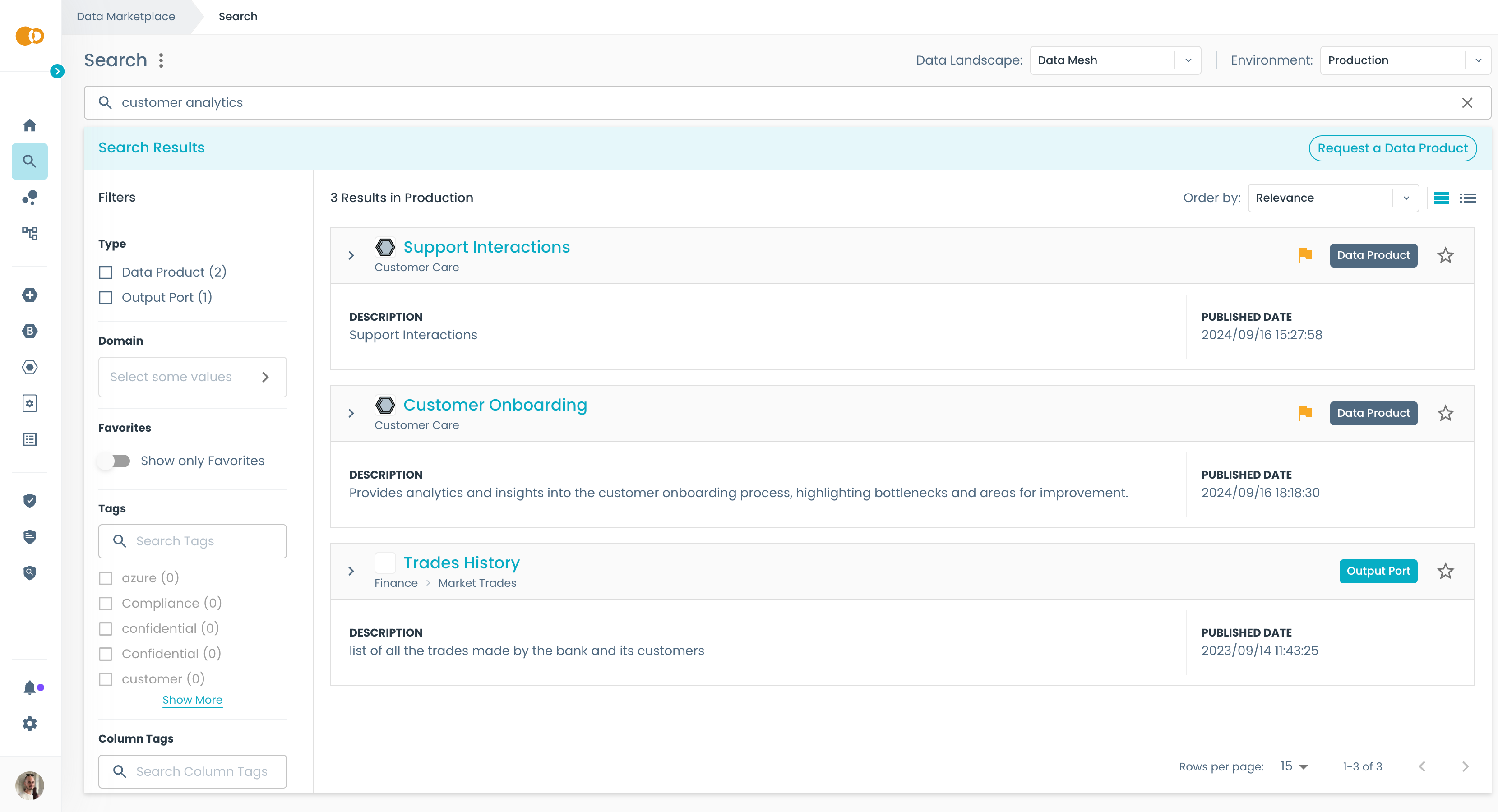

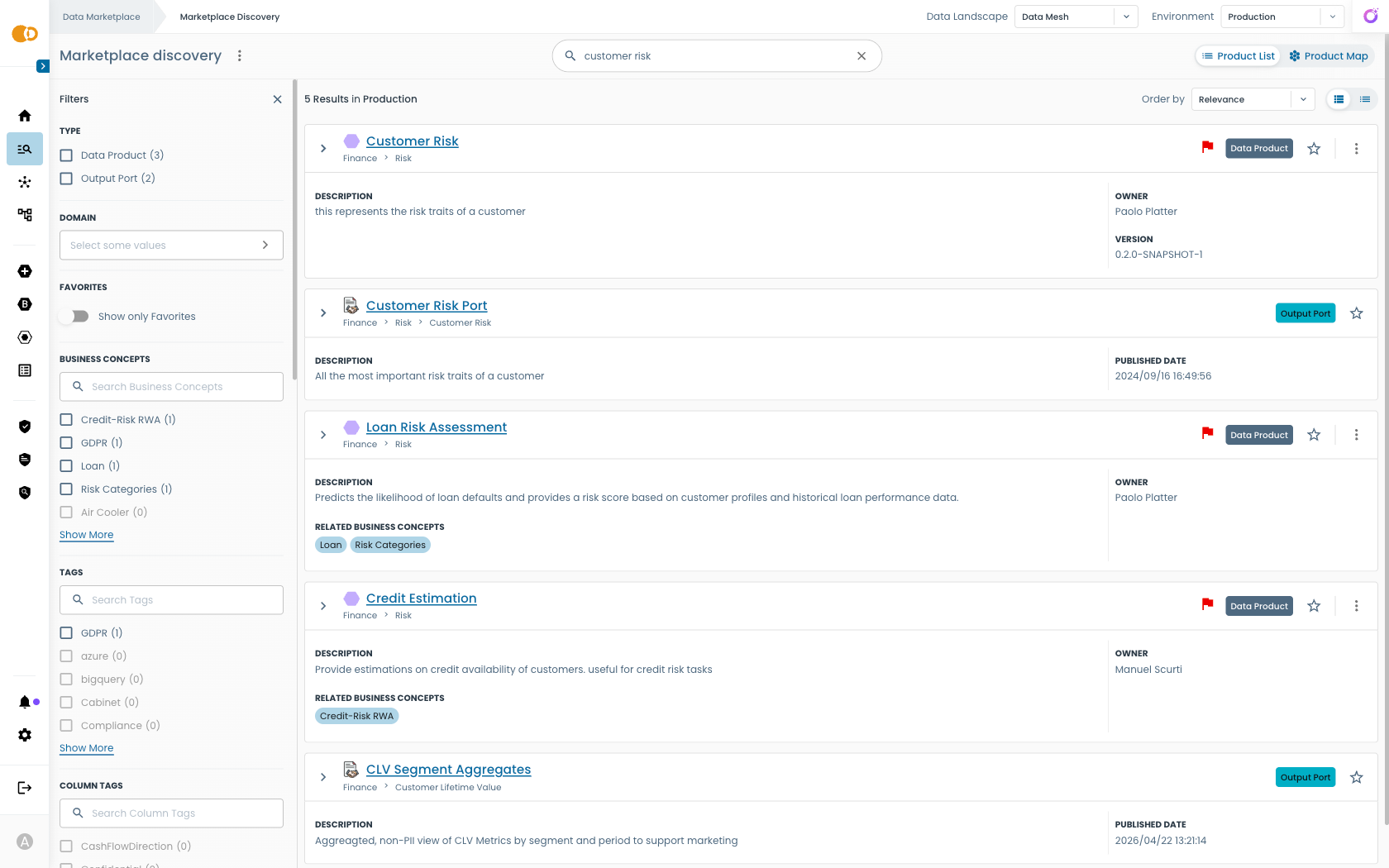

  1. Type some keywords related to the data you’re looking for (e.g., “customer analytics” or “sales trends”) and press Enter to see a list of matching products.

We are now looking at products that are in the Data Mesh landscape and published in the Production environment. At the top right corner you can select a different landscape and environment.

Each result will be shown from the most relevant to the least one. Each search result is presented with a set of information. Most of the times this set is composed by:

  • Project Name: The title of the product
  • Description: A short description of the product and its content
  • Published date: A date indicating when this project has been published
  • Compliance Flags: If at any given time the product is not compliant anymore with any new policy or a real time data quality check, a flag will be shown to warn interested potential consumers about the issue they may encounter when consuming this resource.

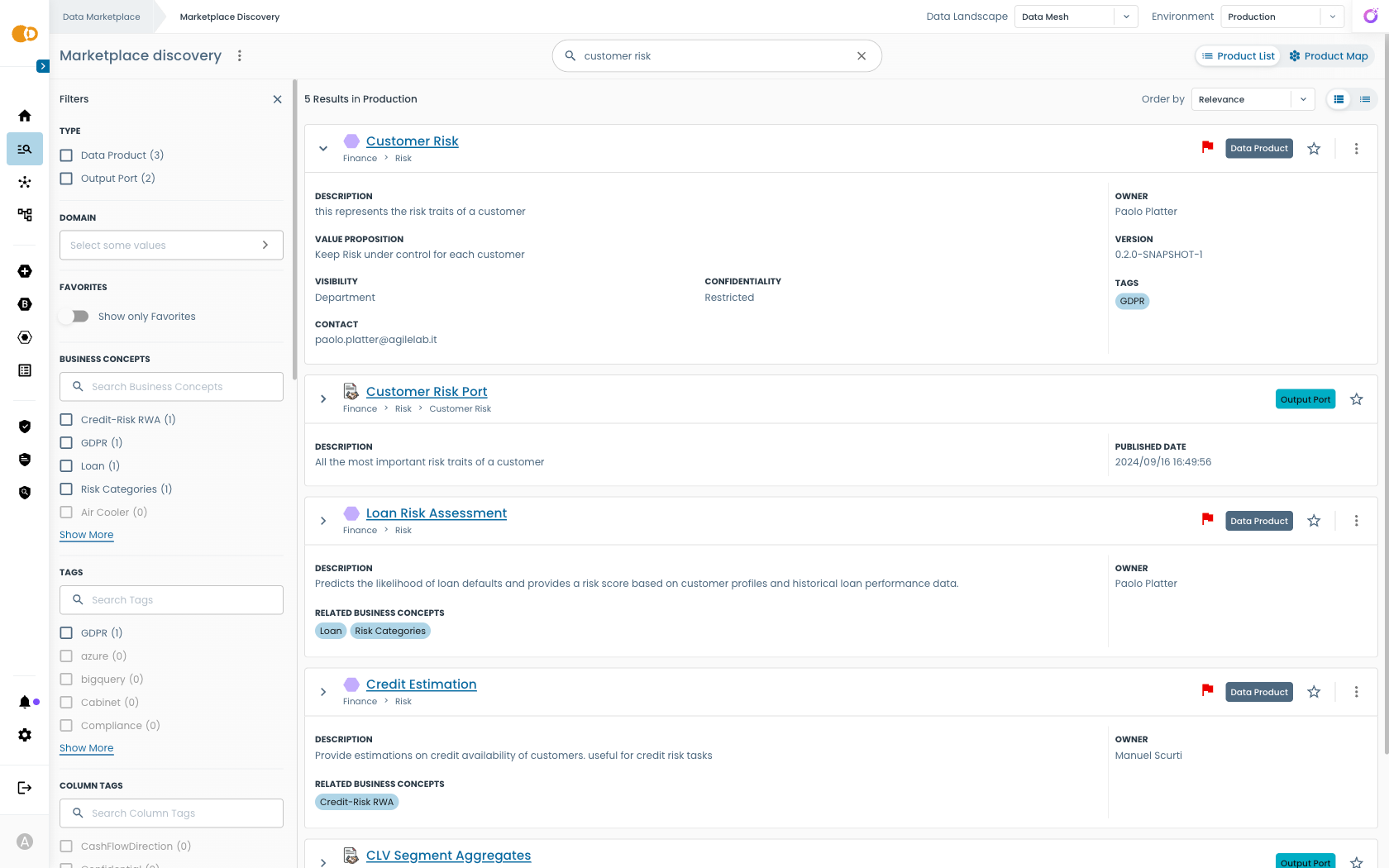

Some more information can be revealed by clicking on the Expand button

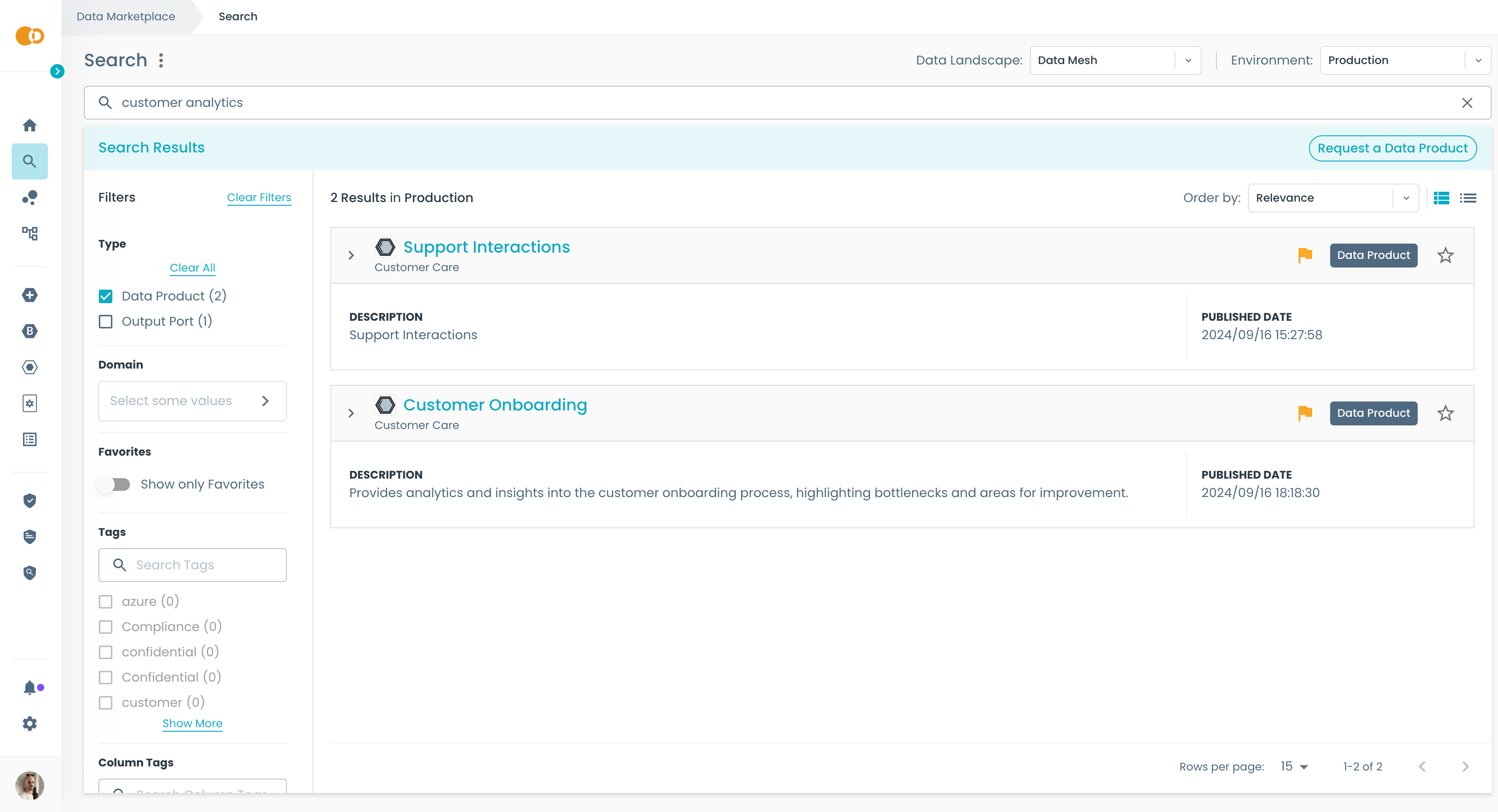

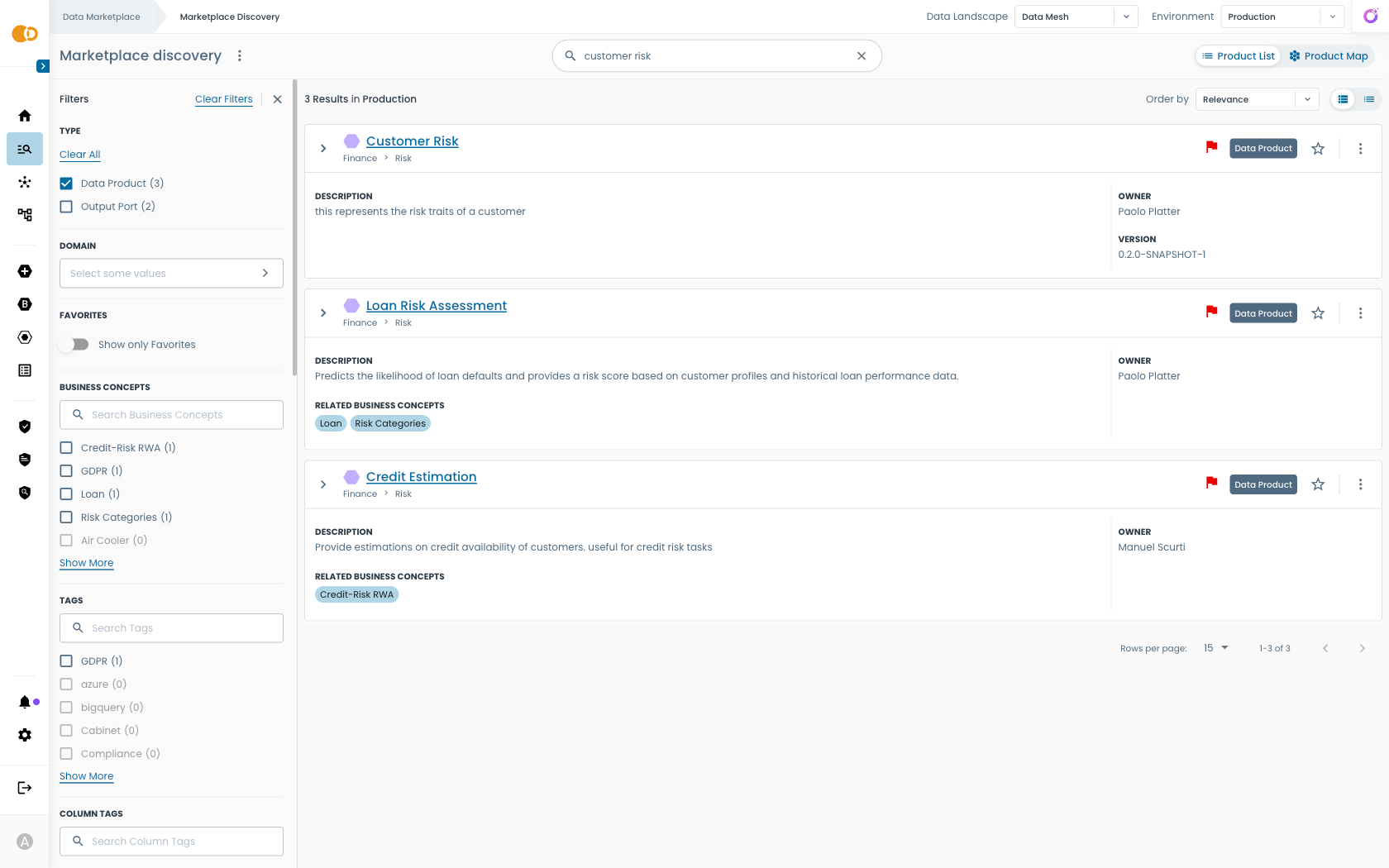

  1. To refine the results, you can use the filters on the left side. You can use the type filter to only show products

Filters may vary depending on your Witboost installation.

Accessing the Lineage Graph​

From Visual Discovery​

If you already use Visual Discovery to explore domains and products, you can access the Lineage Graph directly from there.

  1. From the side menu, open Visual Discovery and navigate the graph until you find the product you are interested in.

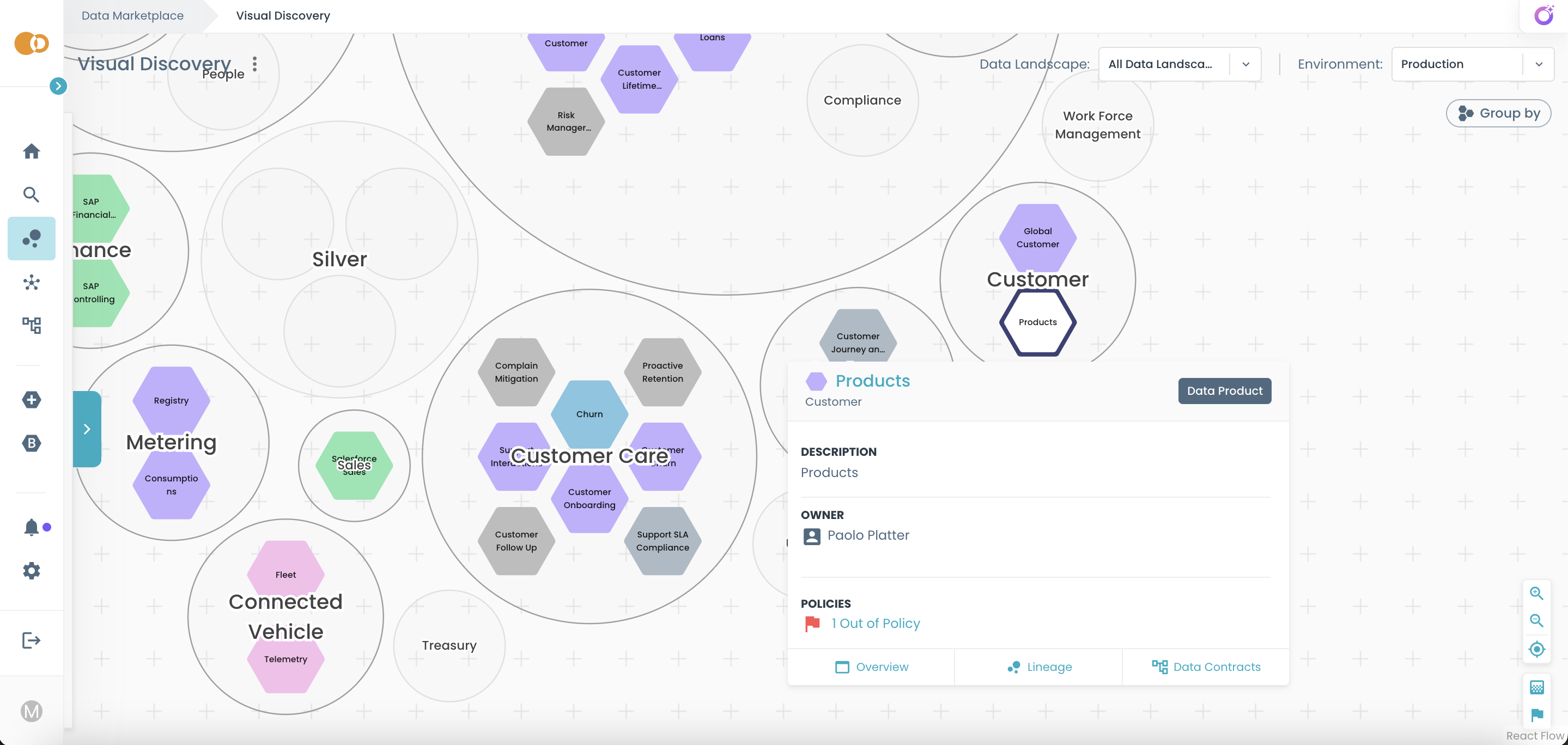

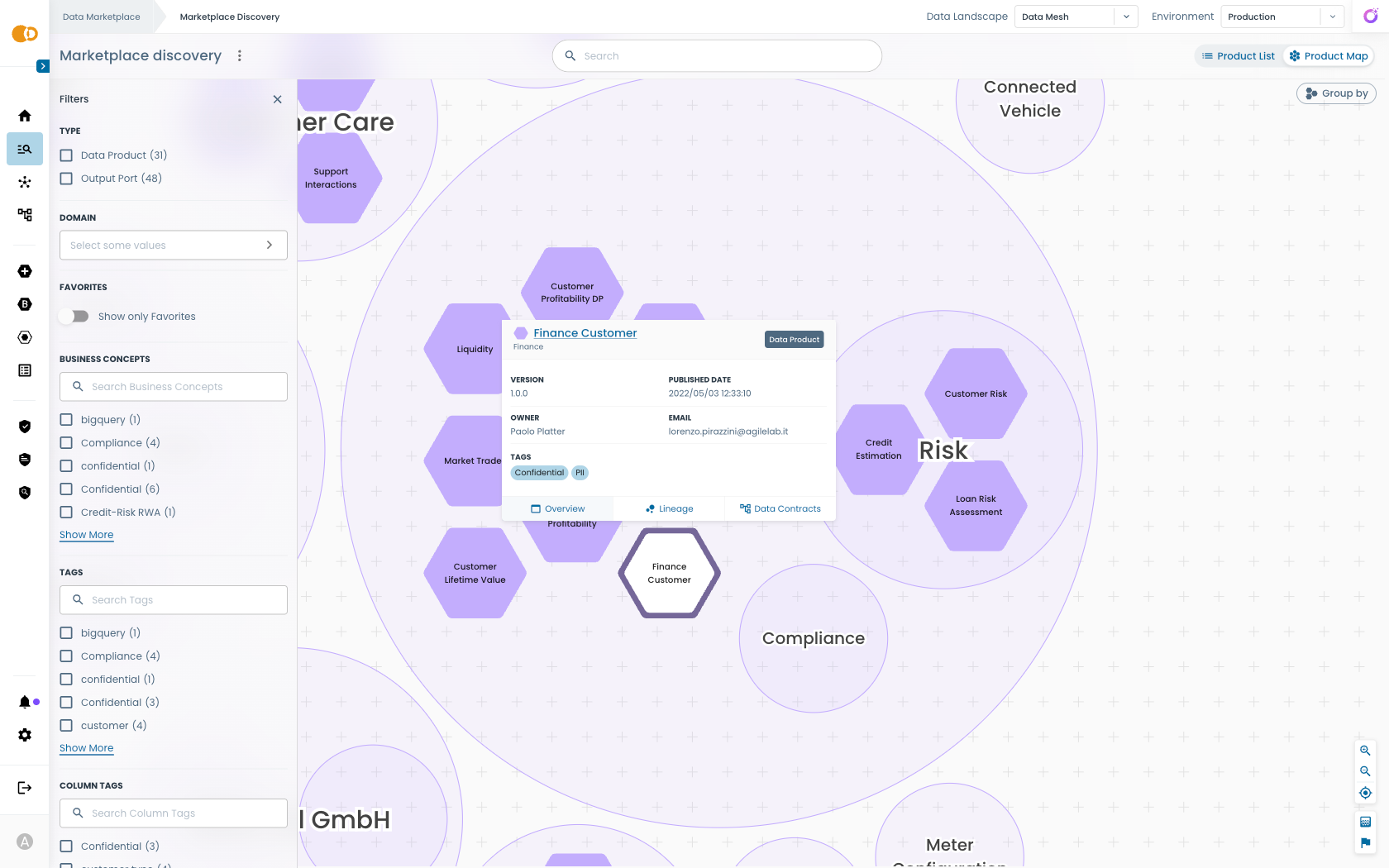

  2. Hover over the product node to open the popover with quick actions.

Product Details

  1. In the popover, click on Lineage.

Witboost opens the product page on the Lineage tab, displaying the Lineage Graph for that product.

From the Product Page​

You can also access the Lineage Graph directly from the detail page of any product.

  1. Open the Marketplace and search for the product you want to inspect.
  2. Click on the product to open its overview page.
  3. In the product navigation tabs, select Lineage.

The Lineage tab loads the graph already focused on the selected product.
